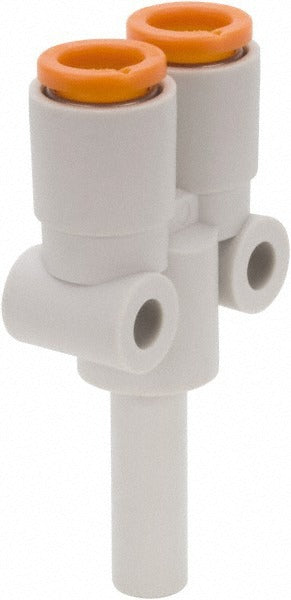

Smc Pneumatics KQ2U03-99A Y-plug Tube Fitting 5/32 in Od

Product Description

The SMC PNEUMATICS KQ2U03-99A is a push-to-connect Y-plug tube fitting designed for quick, tool-free connections in pneumatic plumbing systems. Constructed from brass and polybutylene, it accepts tubing with a 5/32 inch outside diameter and is rated for a maximum working pressure of 145 psi. The Y-plug configuration allows a single tube port to be capped or branched without disturbing the rest of the circuit. Pneumatic technicians and industrial maintenance professionals install this fitting in compressed-air lines, automation equipment, and fluid-handling assemblies where fast, repeatable connections are required.

This fitting is suited for both light industrial and commercial pneumatic applications. It is commonly installed in air-actuated control systems, manifold assemblies, and anywhere a 5/32 inch OD push-to-connect port needs to be plugged or extended. The fitting operates across a wide temperature range, from 23 degrees F to 140 degrees F, making it appropriate for indoor and moderate-environment installations. Its compact overall length of approximately 1.76 inches keeps panel and manifold layouts tight.

Key Features

• Push-to-connect design allows tool-free tube insertion and removal
• Y-plug body style for capping or branching a single pneumatic port
• Rated to 145 psi maximum working pressure
• Brass and polybutylene construction for durability in compressed-air service
• Accepts 5/32 inch OD tubing with a 5/32 inch stem outside diameter
• RoHS compliant

Compatibility

Designed as an OEM-style replacement or direct-install push-to-connect Y-plug fitting for pneumatic systems using 5/32 inch OD tubing rated to 145 psi.

Installation Notes

Installation is performed by pneumatic or industrial maintenance technicians. Always depressurize and isolate the air supply before connecting or disconnecting push-to-connect fittings. Verify that tubing OD matches the fitting specification before insertion to ensure a proper seal. Follow applicable compressed-air system codes and equipment manufacturer guidelines during installation.
