Smc Pneumatics KQ2L12-16A Reducer Elbow Fitting 145 Psi

Product Description

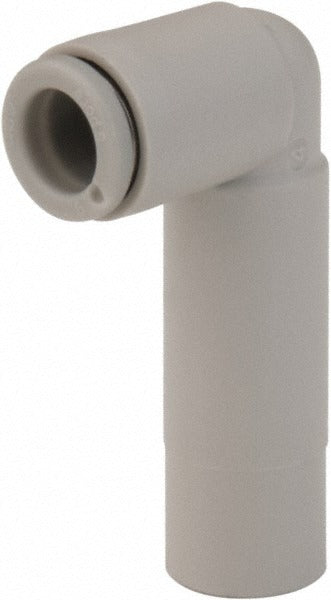

The SMC PNEUMATICS KQ2L12-16A is a push-to-connect plug-in reducer elbow tube fitting constructed from brass and polybutylene. It joins two different tube sizes at a 90-degree angle without tools, allowing a quick, secure connection in pneumatic plumbing lines. The fitting handles a maximum working pressure of 145 psi and operates across a temperature range of 23 degrees F to 140 degrees F. Licensed plumbers, pipefitters, and pneumatic system technicians install this type of fitting in compressed air distribution, fluid transfer, and light industrial tubing assemblies where reducing tube diameter through a change of direction is required.

This reducer elbow is suited for pneumatic and fluid-handling systems that require a transition between a 12 mm outside diameter tube and a 16 mm outside diameter tube at a right-angle junction. Typical installations include compressed air tool lines, pneumatic control systems, and light-duty fluid conveyance setups found in industrial facilities, manufacturing environments, and automated equipment. The push-to-connect design minimizes installation time and supports frequent reconfiguration of tubing runs.

Key Features

• Push-to-connect design allows tool-free tube insertion and removal
• Reduces between 12 mm and 16 mm outside diameter tubes in a single fitting
• Rated to 145 psi maximum working pressure
• Brass and polybutylene construction for durability in pneumatic service
• Operating temperature range of 23 degrees F to 140 degrees F
• RoHS compliant materials

Compatibility

Designed as an OEM-style push-to-connect reducer elbow for pneumatic and fluid-handling tubing systems requiring a 12 mm to 16 mm outside diameter tube reduction at a 90-degree angle.

Installation Notes

Installation is typically performed by a licensed plumber, pipefitter, or qualified pneumatic technician. Before servicing any fitting, depressurize and lock out the pneumatic or fluid system fully. Ensure tube ends are cut square and deburred before insertion to achieve a proper seal. Verify that the tubing material and system pressure do not exceed the fitting ratings prior to returning the system to service.
