Smc Pneumatics KM11-06-10-6 Pneumatic Manifold

Product Description

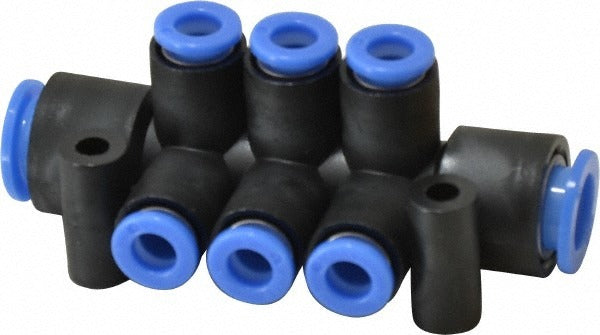

The SMC PNEUMATICS KM11-06-10-6 is a multi-port pneumatic manifold designed to distribute compressed air from a central supply line to multiple downstream circuits. It features two inlet ports sized at 10 mm and six outlet ports sized at 6 mm, allowing one or two supply lines to feed up to six branch lines simultaneously. The body is molded from composite polybutylene terephthalate (PBT), a thermoplastic known for its dimensional stability and resistance to moisture and heat. Overall length is approximately 2.99 inches. This manifold is installed by pneumatic technicians and industrial maintenance professionals in compressed air distribution systems.

This manifold is suited for light industrial and automation applications where a single compressed air source must be split into multiple controlled branches. Typical installations include pneumatic control panels, cylinder banks, valve stations, and tooling fixtures on production lines. Its compact form factor and multi-port layout make it a practical solution for consolidating tubing runs and reducing fitting count in tight enclosures or machine frames.

Key Features

• 10 mm inlet ports (2 total) accept standard push-in or threaded pneumatic fittings
• 6 mm outlet ports (6 total) support up to six independent branch circuits
• Composite PBT body offers resistance to moisture, mild chemicals, and elevated temperatures
• Black molded finish for identification and aesthetic consistency in control assemblies
• Compact overall length of approximately 2.99 inches suits space-constrained installations
• Lightweight construction at 1 pound simplifies mounting and reduces structural load

Compatibility

Designed as an OEM-style pneumatic manifold for use in compressed air distribution systems accepting 10 mm inlet and 6 mm outlet tubing connections.

Installation Notes

Installation should be performed by a qualified pneumatic technician or industrial maintenance professional. Depressurize and lock out the compressed air supply before removing or installing any manifold or fitting. Ensure all tubing is fully seated in push-in fittings and that thread connections are sealed appropriately per the system design. Follow applicable local codes and equipment manufacturer guidelines for compressed air system assembly.
