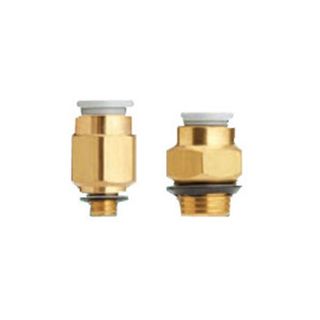

SMC KQ2V10-U02A One-Touch Fitting with 10mm Compatible Tube Outer Diameter

Product Description

The SMC KQ2V10-U02A is a one-touch fitting designed for easy connection and disconnection in pneumatic applications. This fitting supports metric-sized tubing with an outer diameter of ten millimeters. Suitable for use with various connection types including Rc, G, NPT, and NPTF threads, it offers flexibility for your installation needs.

• Quick and easy installation for pneumatic systems
• Compatible with multiple tubing materials including FEP, PFA, nylon, and polyurethane
• Operating pressure range from -100 kPa to +1 MPa

Product Highlights

This fitting is ideal for a range of fluid applications, including air and water, and includes a release collar for hassle-free tubing removal without damage.

Product Information

Standard Information

• Manufacturer: SMC
• Part Number: KQ2V10-U02A

Technical Specifications

• Model: V (Universal Elbow)
• Pipe Connection Diameter: U02 (Uni 1/4)
• Applicable Tubing O.D.: 10 mm
• Screw Material: Brass
• Fitting Shape: 90° Elbow
• Burst Pressure: 3 MPa
• Overall Length: 34 mm
• Overall Diameter: 20.6 mm
