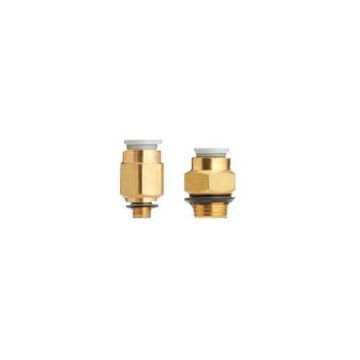

SMC KQ2L12-U04A ONE-TOUCH FITTING 12MM X UNI 1/2 MALE THREAD

Product Description

The SMC KQ2L12-U04A is a one touch fitting designed for ease of use in pneumatic applications. This fitting features a male connector type and operates within a pressure range of -100 kPa to 1 MPa.

• Compatible with various tube materials including FEP, PFA, nylon, and polyurethane
• Includes a release collar for easy tube removal
• Not suitable for potable water systems

Product Highlights

The KQ2L12-U04A fitting is ideal for use in air and water applications. Its robust design ensures reliable performance in various settings with a maximum operating temperature of 60 degrees Celsius.

Product Information

Standard Information

• Brand: SMC
• Country of Origin: JP

Technical Specifications

• Series: KQ2
• Material: Brass
• Nominal Size: 12 mm x Uni 1/2
• Overall Length: 33.5 mm
• Hex Size: 22 mm
• Operating Temperature Range: -5 to 60 degrees Celsius
• Fitting Connection Type: Female Push-In x 1/2 Male UNI Threaded
• Fitting Shape: 90 degrees Elbow
• Pressure Rating: -100 kPa to 1 MPa
