Sloan SOLIS 8186-1 3370006 Solis 8186-1.0 Exposed Solar-Powered Single Flush Urinal Flushometer (1.0 GPF/3.8 LPF)

Product Description

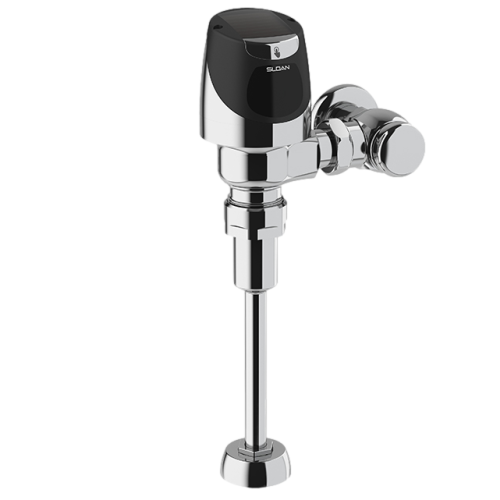

The Sloan SOLIS 8186-1 3370006 is an exposed, solar-powered, sensor-activated Solis model urinal flushometer with Smart Sense Technology. This single-flush urinal flushometer uses light to charge a highly efficient capacitor, providing power even in rooms with occupancy-controlled lighting. It is designed for either left or right hand supply.

• Solar powered sensor assembly harvests power from artificial indoor light.
• Features a PERMEX synthetic rubber diaphragm with twin linear filtered bypass and vortex cleansing action.
• ADA compliant Sloan Solis solar-powered infrared sensor for automatic "No Hands" operation.

Product Highlights

This Sloan Solis flushometer offers reliable, hands-free operation and water conservation.

Product Information

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: SOLIS 8186-1 3370006

Technical Specifications

• ADA: Yes
• Product Type: Flushometer
• Application: Plumbing
• Model: SOLIS
• Material: Chrome Plated
• Series: 8186
• Gallons Per Flush: 1.0 GPF
• Operating Pressure: 15-100 psi
• Spud Placement: Top
• Spud Size: 3/4"
• Type: Sensor
• Features: 8 Second Arming Delay 3 Second Flush Delay 72 Hour Sentinel Flush (after last flush)
• Installation Type: Urinal
• Power Method: Solar Powered
• Toilet/Urinal: Urinal
• Finish: Polished Chrome (CP)
• Flow Rate: 1.0 GPF
• Valve Type: Diaphragm
• Power: Solar
• Flush Volume: 1.0 gpf (3.8 Lpf)
• Power Type: Solar
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Top spud
• Rough-In Dimension: 11-1/2" (292mm)
• Spud Coupling: 3/4" (19mm)
• Supply Pipe: 3/4" (19mm)
• Override: Electrical (OR)
