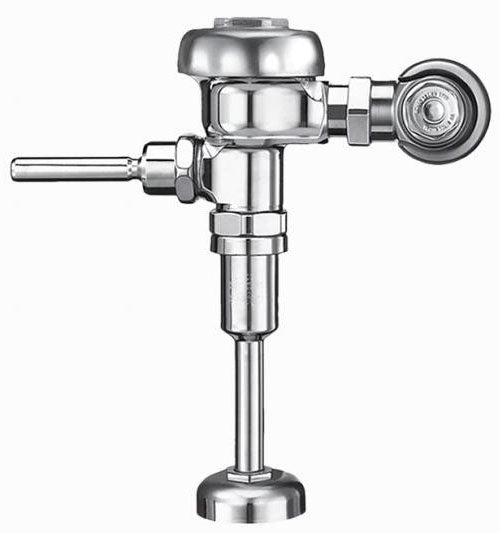

Sloan REGAL-186-1.0-XL Urinal Flushometer 1 GPF 3/4 IPS

Product Description

The Sloan REGAL-186-1.0-XL is a urinal flushometer designed for efficient flushing in commercial bathrooms. This model features a diaphragm, manual exposed, single flush activation for reliability in high-traffic areas.

• Flow rate of 1 gallon per flush
• Constructed from semi-red brass and polished chrome
• Top spud configuration with oscillating non-hold-open handle

Product Highlights

This flushometer is ideal for urinal installations, ensuring compliance with ADA and other standards. It includes a control stop plug and sweat solder kit for easy installation.

Product Information

Standard Information

• Manufacturer: Sloan Valve
• Body Material: Semi-Red Brass

Technical Specifications

• Actuation Type: Oscillating Non-Hold-Open Handle
• Inlet Size: 3/4 Inch
• Spud Size: 3/4 Inch
• Flow Rate: 1 GPF
• Tailpiece Length: 2-1/16 Inch
• Mounting Type: Top Mount
• Sweat Solder Kit Supplied: Yes
• Applicable Standards: ADA, BAA, CUPC, ASSE 1037, ANSI/ASME 112.19.2, ASTM
