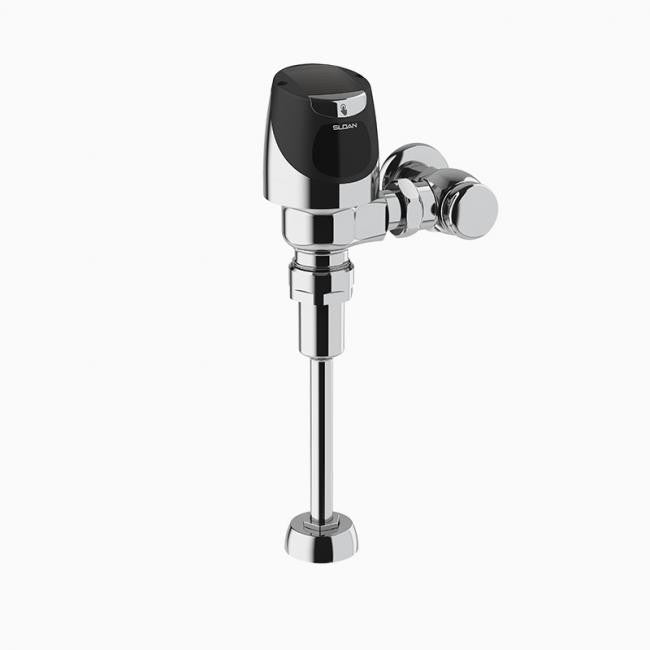

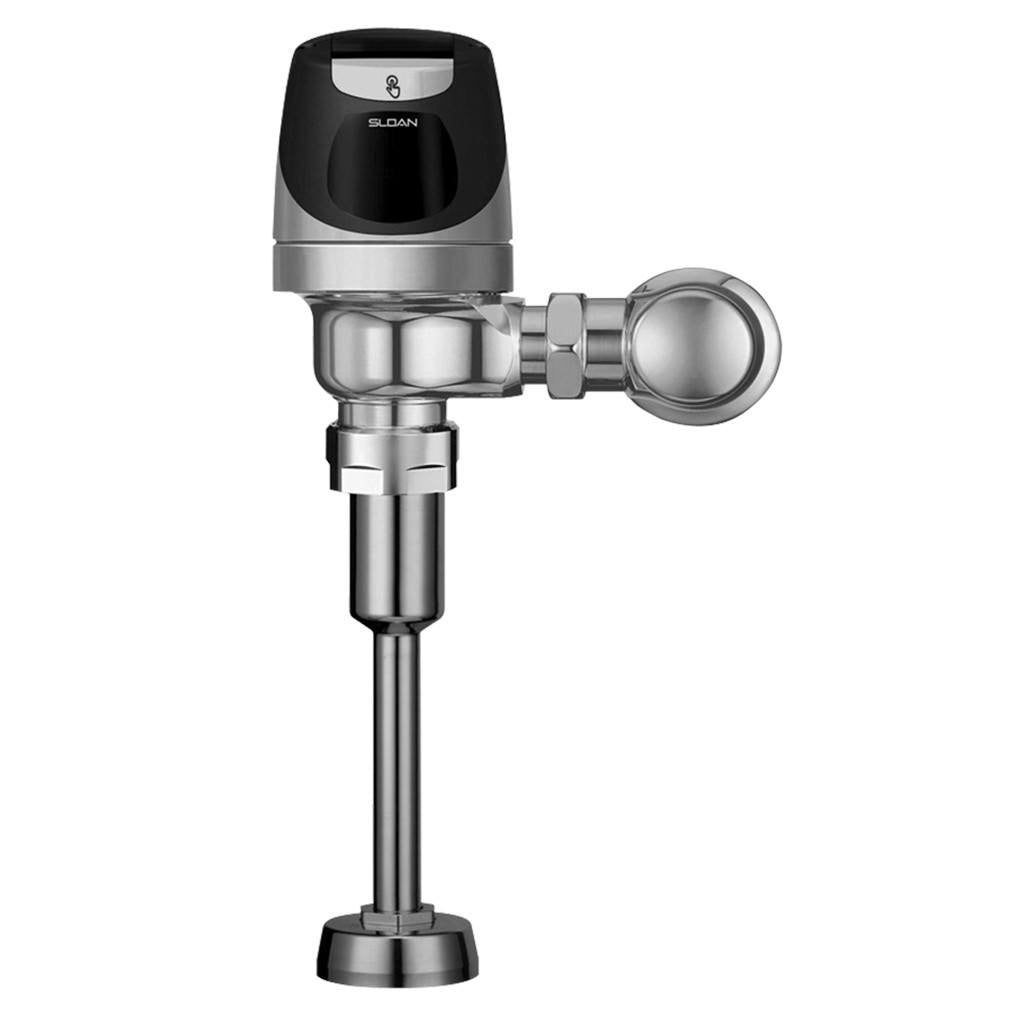

Sloan Led 3370005 Solis 8186-0.25 Exposed Solar-Powered Single Flush Urinal Flushometer 0.25 GPF/0.9 LPF

Product Description

The Sloan LED 3370005 Solis 8186-0.25 is a solar-powered, sensor-activated single flush urinal flushometer. This efficient design utilizes light to charge a capacitor, enabling operation even under low-light conditions. It is ADA compliant and can reduce water usage by up to eighty percent compared to standard options.

• Pressure compensating cartridge assembly
• Synthetic rubber seals for chloramine resistance
• Includes a three-fourth inch I.P.S. screwdriver Bak-Chek angle stop

Product Highlights

Ideal for urinal installations in commercial settings, this flushometer promotes water conservation and ensures reliable performance.

Product Information

Standard Information

• Product Type: Flushometer
• Application: Plumbing

Technical Specifications

• Model: Solis
• Material: Chrome Plated
• Series: 8186
• ADA Compliant: Yes
• Spud Placement: Top
• Operating Pressure: 15-100 psi
• Spud Size: 3/4 inch
• Gallons Per Flush: 0.25
• Type: Sensor

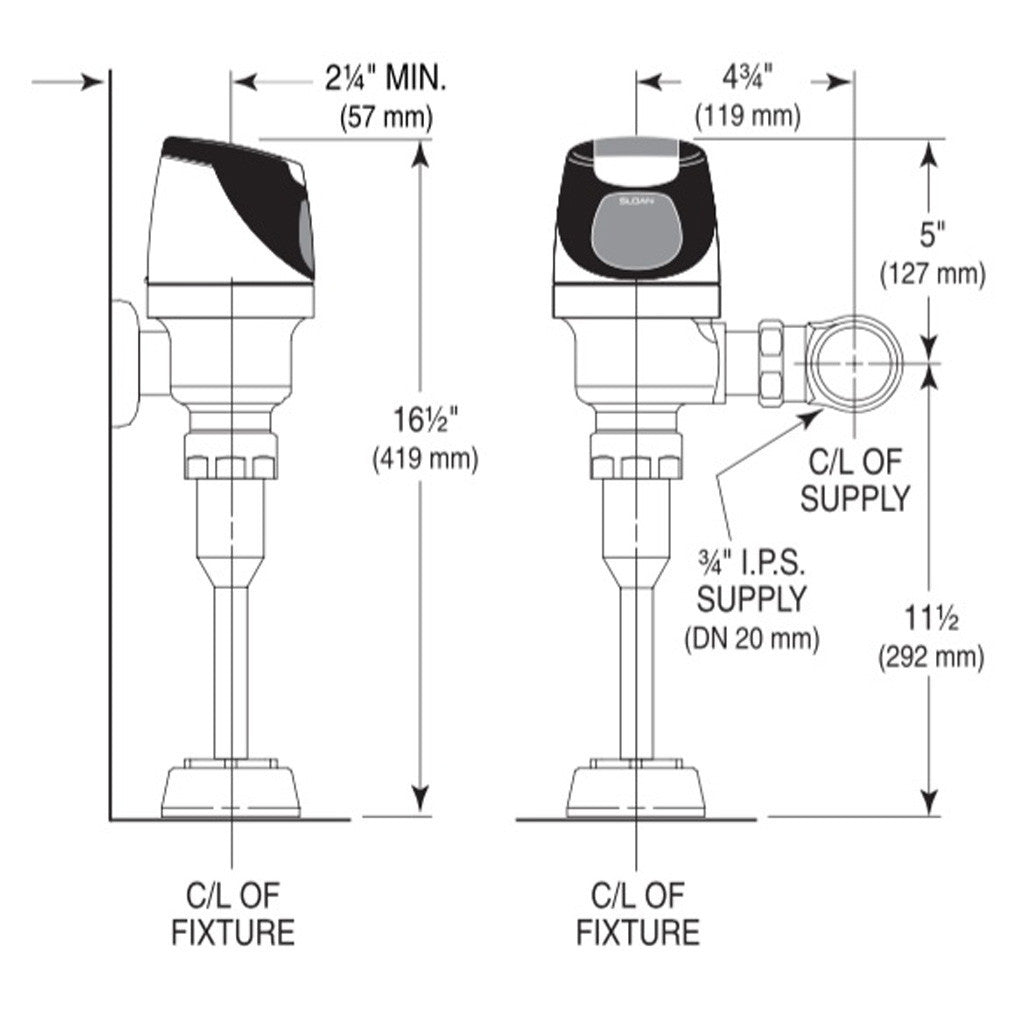

• Height: 16.5 inches
• Warranty: 3 years
• Sensor Type: Active Infrared
• Sensor Range: Nominal 22 inches - 42 inches (559 mm - 1067 mm), adjustable 8 inches (203 mm)
• Battery Backup Type: (4) AA alkalines
• Battery Life: 6 years at 4,000 flushes/month
• Indicator Lights: Range adjustment/low battery
• Sentinel Flush: Once every 72 hours after the last flush
• Flush Volume: 0.25 GPF (0.9 LPF)
• Finish: Polished Chrome
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Top Spud
• Supply Pipe: 3/4 inch
• Rough-In Dimension: 11.5 inches
