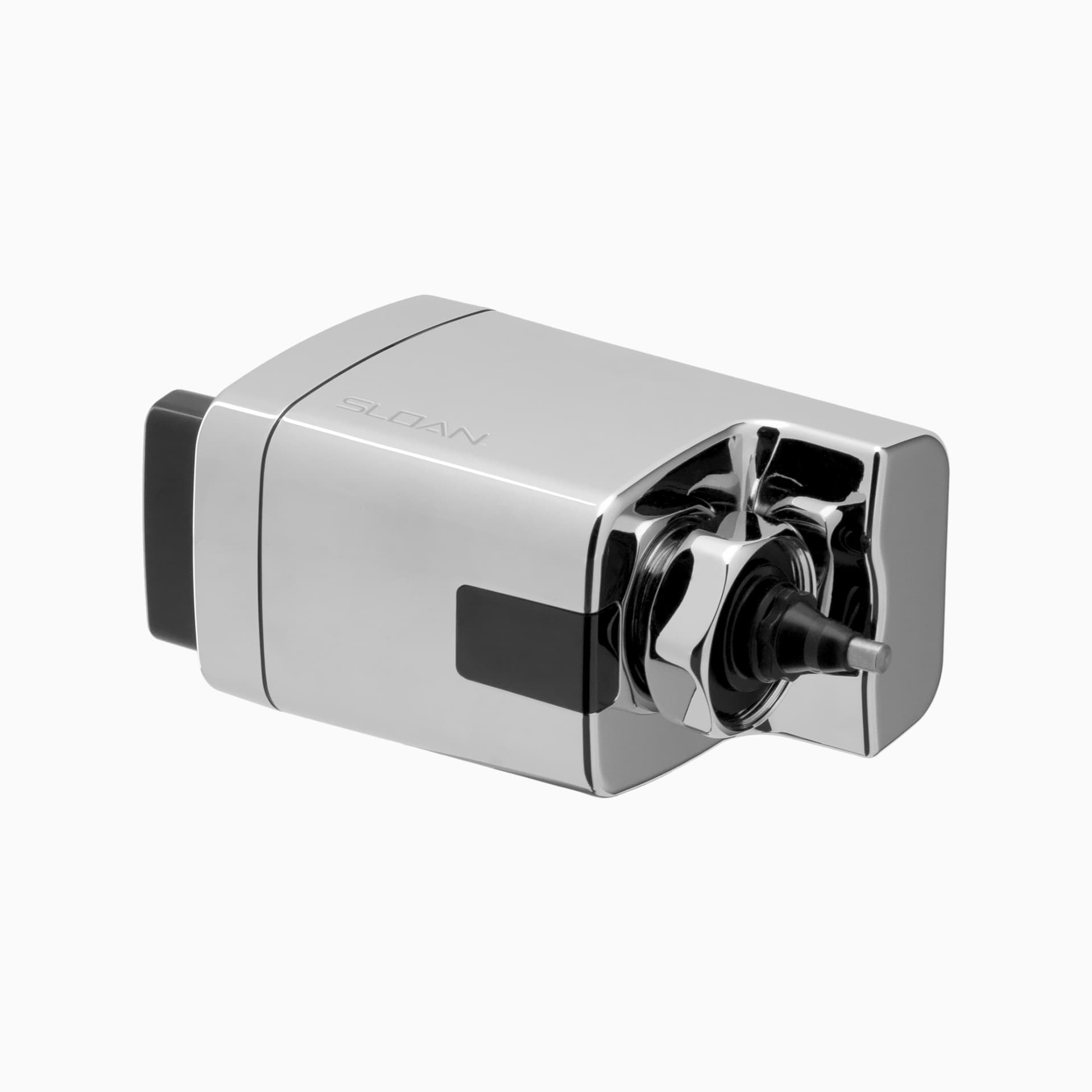

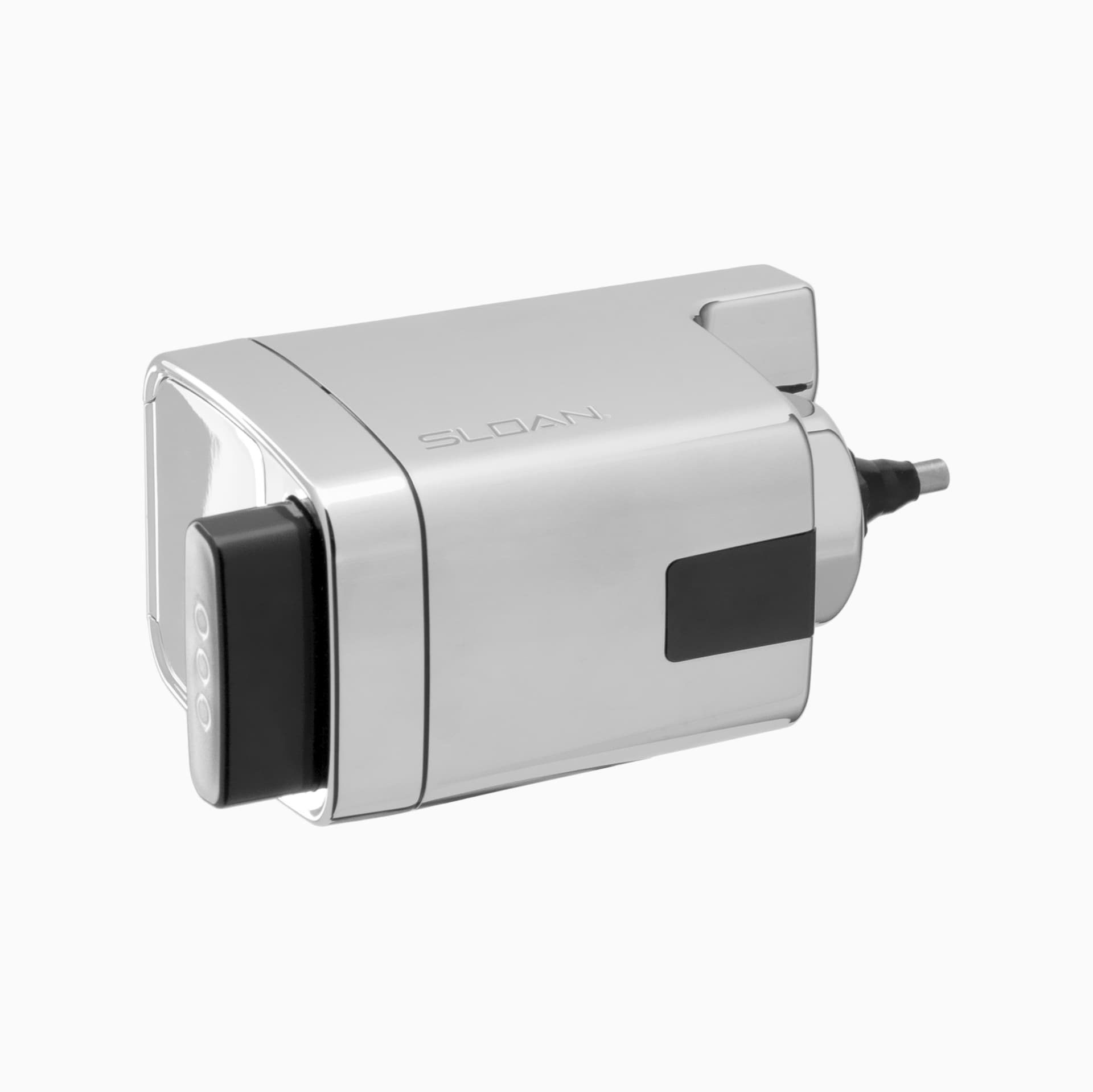

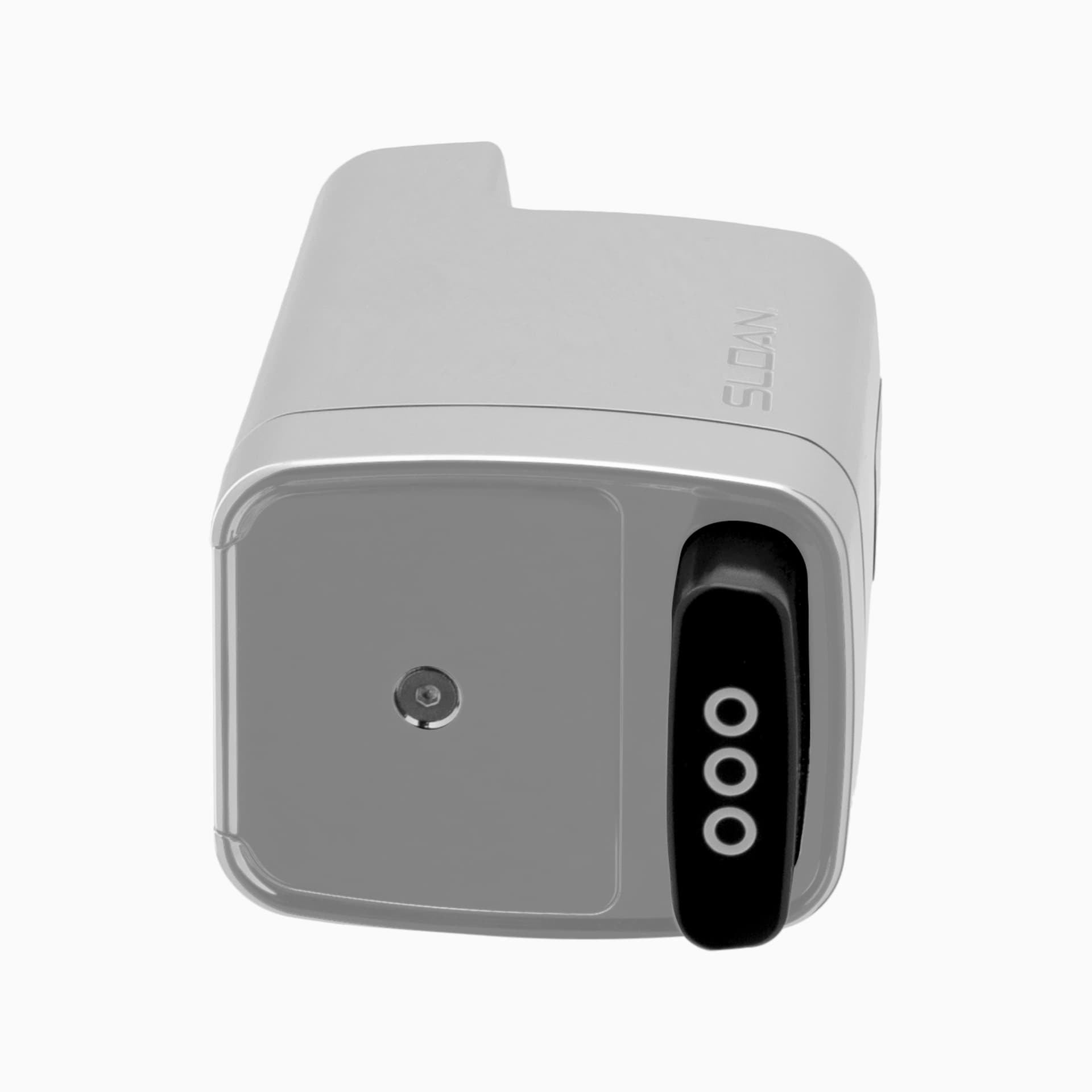

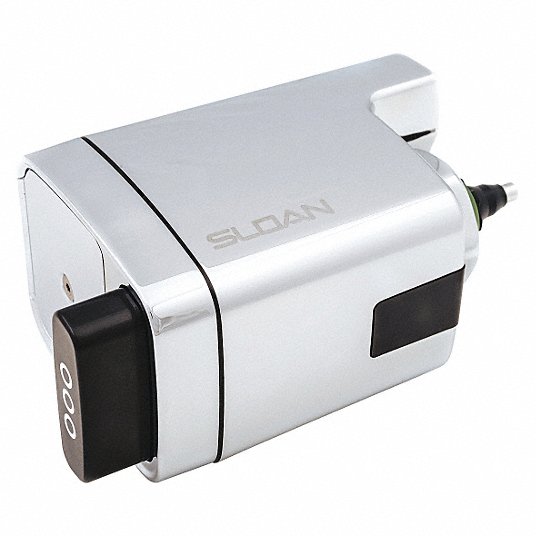

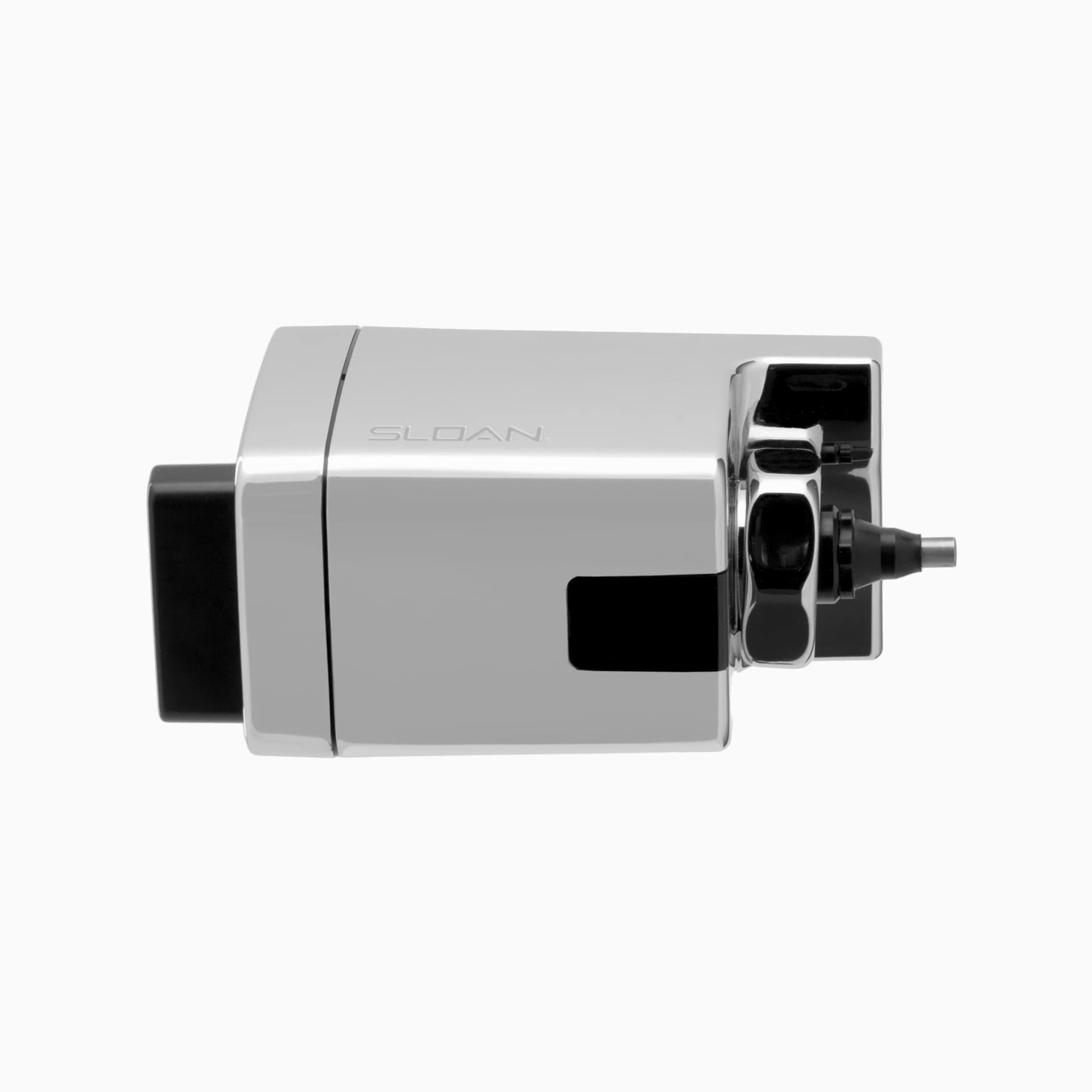

Sloan EBV500A Exposed Sensor Urinal/Water Closet Retrofit Flushometer

Product Description

The SLOAN EBV500A Exposed Sensor Urinal/Water Closet Retrofit Flushometer combines advanced technology with practical functionality, offering a seamless upgrade for existing facilities. Features a battery-powered sensor system with an estimated 3-year battery life, ensuring long-term reliability and minimal maintenance. The 72-Hour Sentinel Flush automatically activates to maintain optimal sanitation. Includes a True Mechanical Override for manual flushing when necessary.

• 72-Hour Sentinel Flush
• Battery powered
• Estimated 3 year battery life
• True Mechanical Override for manual flush

Product Highlights

The SLOAN EBV500A is designed to meet the highest standards of performance and durability, making it an ideal choice for high-traffic commercial and institutional restrooms.

Product Information

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: EBV500A
• Country of Origin: China

Technical Specifications

• Valve Operating Pressure (Flowing): 25-80 psi (172-552 kPa)
• Battery Life: 3 years @ 4,000 flushes/month
• Brand: SLOAN
• Series: Sloan
• Product Type: Automatic Flush Valve Retrofit Kit
• Mounting Type: Side
• Flush Mode: Single Flush
• Basic Power Source: Hydropower/Battery Backup
• Finish: Polished Chrome
• Min. Operating Pressure: 15 psi
• Max. Operating Pressure: 80 psi
• Min. Sensor Range: 15 in
• Max. Sensor Range: 42 in
• Sensor Range Adjustment: Self-Adjusting
• Includes: (4) C Batteries
• Compatible Product Type: Toilets; Urinals
• Standards: ADA Compliant
• Manufacturer Part Number: EBV-500-A
• UNSPSC: 47131705
