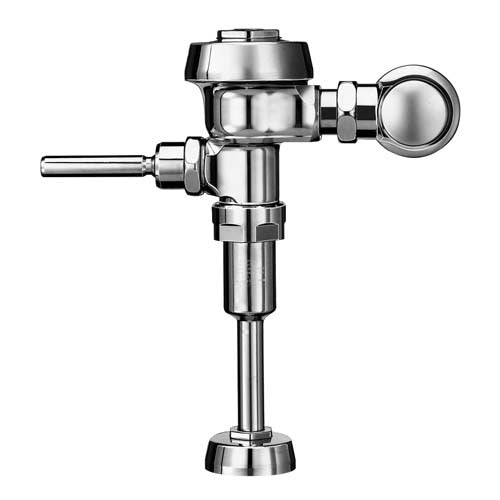

Sloan 3910249 Urinal Flush Valve 1.0 Gpf

Product Description

The SLOAN 3910249 is a urinal flush valve from the Royal product line, rated at 1.0 gallons per flush (GPF). It ships as a flush valve only and includes a ground joint tailpiece for connection to the urinal spud. This is a manual flush valve intended for commercial restroom applications where water efficiency and reliable performance are required. Licensed plumbers and facility maintenance professionals handle installation and replacement. At 4.6 pounds, the unit is a manageable single-person install in most service scenarios.

The 3910249 is suited for commercial and institutional restroom installations using wall-mounted urinals. It is designed for systems where a 1.0 GPF flush rate meets local water efficiency codes. Typical applications include office buildings, schools, stadiums, and other high-traffic facilities. The ground joint tailpiece design provides a leak-resistant connection at the urinal spud without the need for additional fittings.

Key Features

• 1.0 GPF flush rate supports water conservation code compliance
• Ground joint tailpiece included for direct spud connection
• Flush valve only configuration for targeted replacement service
• Part of the SLOAN Royal flush valve product line
• Compact unit weight of 4.6 pounds for straightforward single-tech handling

Compatibility

Designed as an OEM-style replacement flush valve for commercial urinal systems requiring a 1.0 GPF manual valve with a ground joint tailpiece connection.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply to the flush valve before beginning any service or replacement work. Ensure the stop inside the valve body is adjusted to deliver the correct flush volume after installation. Do not overtighten the packing nut or tailpiece connection, as this can damage sealing surfaces.

Technical Specifications

• Flush Rate: 1.0 GPF
• Connection Type: Ground Joint Tailpiece
• Weight: 4.6 pounds
• UPC Code: 671254135505

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 3910249
