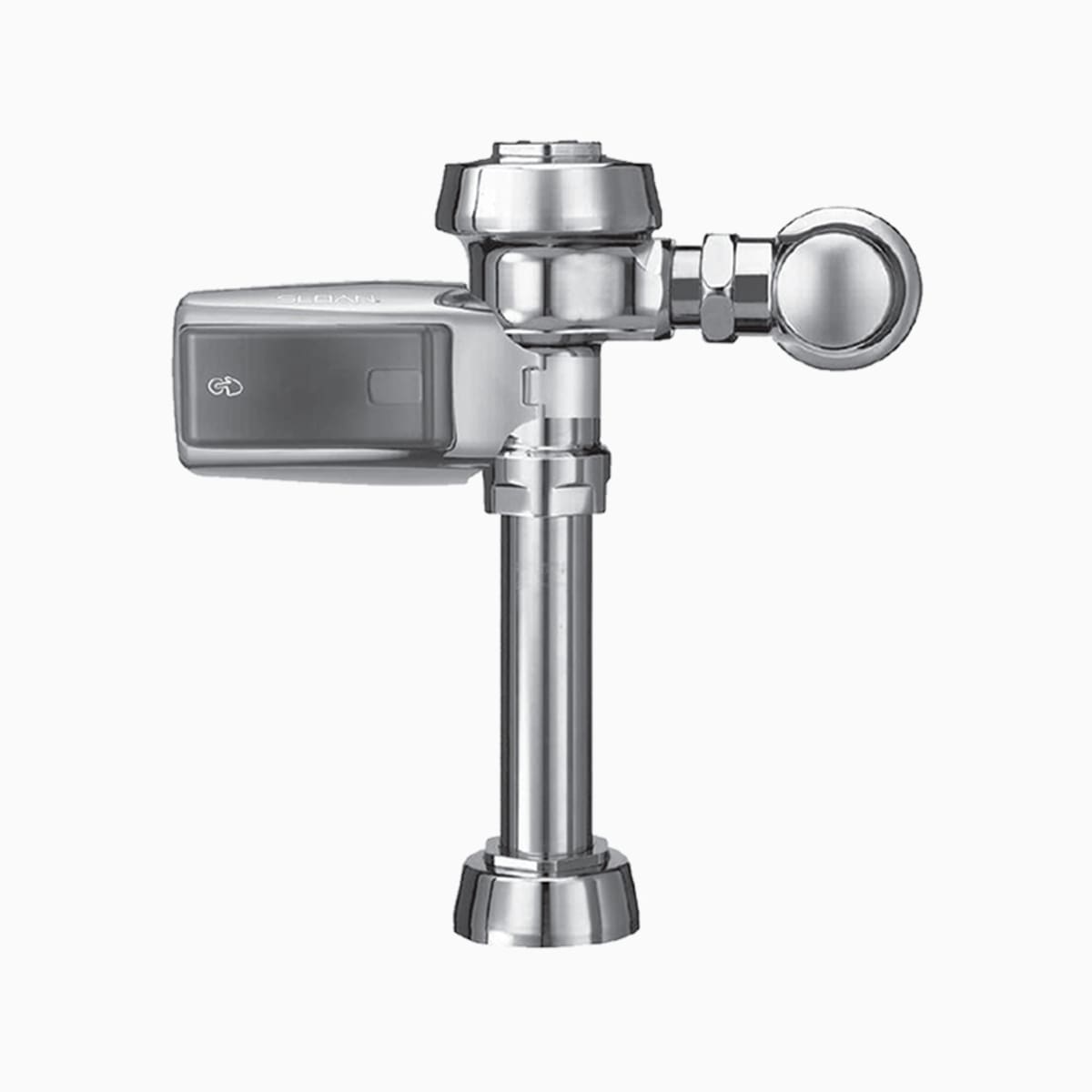

Sloan 3910072 Royal 111-1.28 Smooth Sensor Flushometer 1.28 gpf

Product Description

The SLOAN 3910072 Royal 111-1.28 Smooth is a sensor-operated flushometer that includes a required wall plate and a purple wall flange to indicate reclaimed water use. It features a PERMEX synthetic rubber diaphragm with a dual-filtered fixed bypass. Critical components are made of semi-red brass and comply with ASTM alloy classifications.

• Includes a wall plate and purple wall flange for reclaimed water indication.
• Features PERMEX synthetic rubber diaphragm with dual filtered fixed bypass.
• Critical components made of semi-red brass.

Product Highlights

This sensor-operated flushometer is designed for commercial use and ensures water conservation with its efficient single-flush mechanism.

Product Information

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 3910072
• Country of Origin: United States

Technical Specifications

• Type: Sensor Operated
• Height: 9.75
• Power Source: Battery
• FinishColor: Polished Chrome
• Finish_Name: Polished Chrome
• Gallons_per_Flush: 1.28 gpf
• Fixture_Connection: Top Spud
• Operating_Pressure: 25 to 80 psi
• Operating_Mechanism: Single
• Commercial_or_Residential: Primarily Commercial
• Category: Flushometer
• Fixture Mount: Floor
• Fixture Type: Water Closet
• Installation Place: Exposed
• Brand: Sloan
• Inlet Size: 1 in IPS
• Spud Coupling: 1-1/2 in
• Pressure Rating: 25 to 80 psi
• Handle Type: Non-Hold Open Oscillating
• Material: Semi-Red Brass
• Rough-In Size: 11-1/2 in
• Sensor Range: 26 to 32 in
• Series: 111 SMOOTH, 111-SMOOTH-1.28
• Valve Design: Diaphragm
• Domestic/Import: Domestic
• Country of Origin: US
• Standards and Approvals: ASSE Valve | ADA Compliant | BAA Compliant | cUPC Listed | cUPC Green Certified | Satisfies LEED Credits | WaterSense Listed
• Model: 111-1.28
• Manufacturer: Sloan
• Part Number: 3910072
• Toilet/Urinal: Toilet
• Vacuum Breaker Length: 9"
