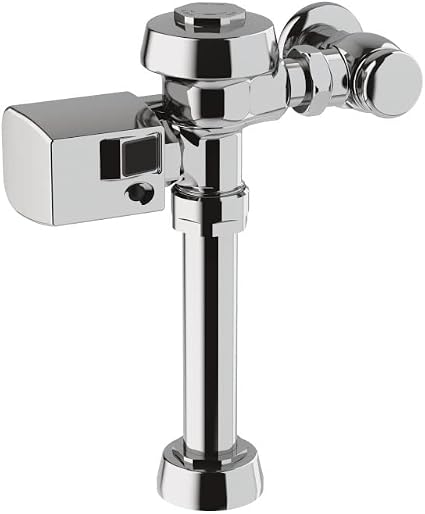

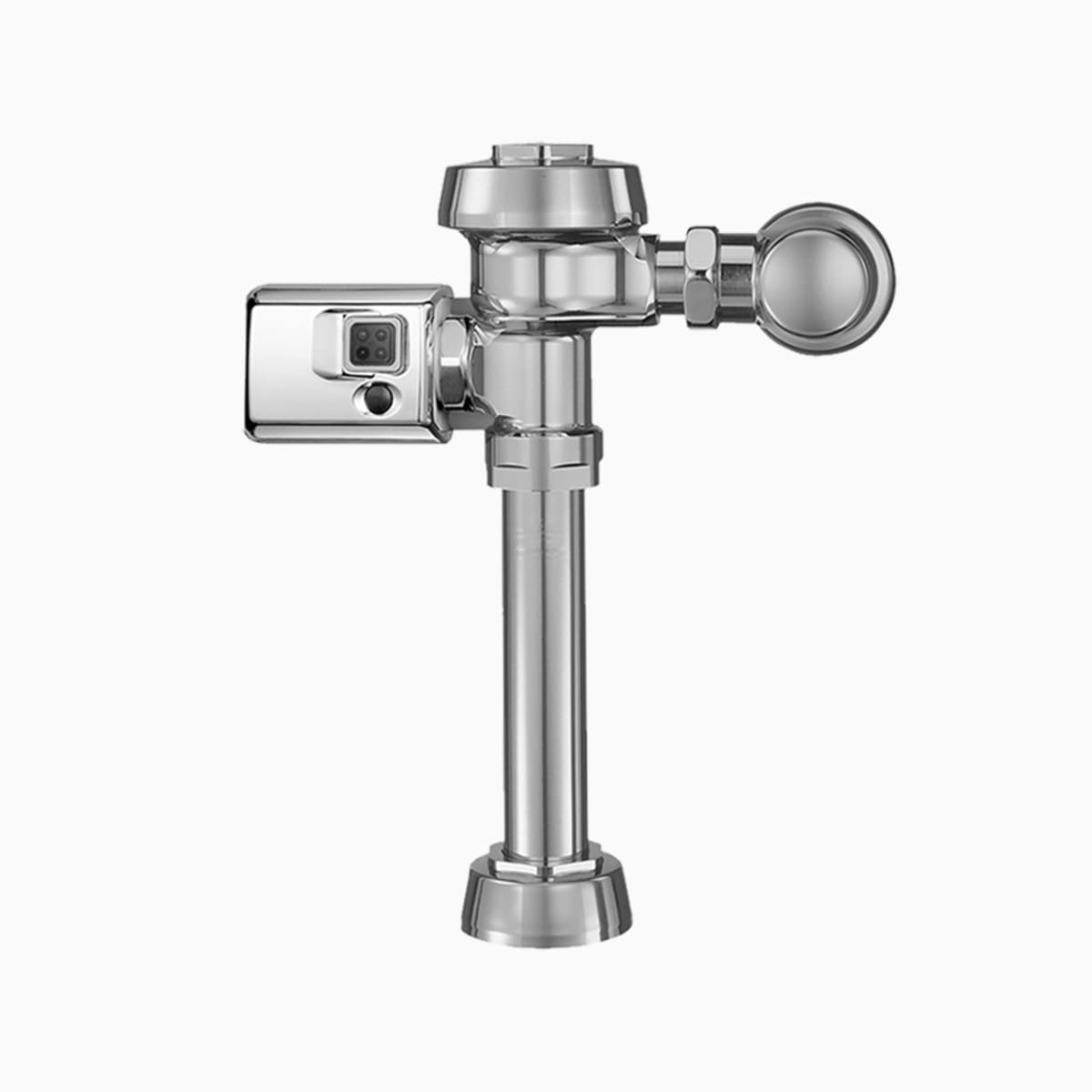

Sloan 3910022 Royal 111 Exposed Sensor Water Closet Flushometer Battery Side Mount 1.28 GPF

Product Description

Sloan 3910022 is a Royal 111 exposed sensor water closet flushometer with a battery-powered side-mount sensor operator. The single-flush valve delivers 1.28 gallons per flush and is configured for top-spud water closet installations. The unit uses a diaphragm valve in a semi-red brass body with a PERMEX synthetic rubber diaphragm and dual-filtered bypass, and includes battery-powered infrared activation with indicator LEDs.

• 1.28 gallons per flush single-flush operation with top-spud fixture connection for water closet installations
• Diaphragm valve with semi-red brass valve body and PERMEX synthetic rubber diaphragm with dual-filtered bypass
• Battery-powered side-mount sensor operator (battery life approximately 3 years), with low-battery and user-in-view LEDs and optional sentinel flush

Product Highlights

Sensor-activated 1.28 GPF exposed flushometer for top-spud water closets with PERMEX diaphragm and battery side-mount operator

Product Information

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 3910022

Technical Specifications

• Brand: Sloan
• MPN: 3910022
• Product Name: Royal 111 Exposed Sensor Water Closet Flushometer
• Model / Series: Royal 111
• Type: Sensor Operated
• Power Type: Battery
• Operator Type: Battery powered side-mount sensor operator
• Flush Volume: 1.28 gpf (4.8 Lpf)
• Flush Type: Single flush
• Fixture Connection: Top spud
• Fixture Type: Water Closet
• Finish: Polished chrome
• Valve Type: Diaphragm
• Valve Body Material: Semi-red brass
• Diaphragm Material: PERMEX synthetic rubber
• Diaphragm Features: Dual-filtered bypass; chloramine resistant components
• Battery Life: Approximately 3 years
• Batteries Included: Four Size C (noted in documentation)
• Spud Size: 1-1/2" (38 mm)
• Spud Coupling: 1-1/2" (38 mm)
• Supply Pipe: 1" (25 mm)
• Rough-In Dimension: 11-1/2" (292 mm)
• Operating Pressure: 15-80 psi
• Indicators: Low-battery flashing LED; User-in-view flashing LED; optional audio tone
• Optional Features: 24-hour sentinel flush; optional purple handle/flange for reclaimed water indication (per documentation)
• Vacuum Breaker: High back pressure vacuum breaker flush connection with hex coupling nut
• Control Stop / Inlet Size: 1" I.P.S. control stop and inlet
• Installation Type: Exposed top-spud installation for commercial restrooms
• Compliance: Complies with applicable sections of ASSE 1037
• Mounting Type: Exposed
