SLOAN 3772683 186-1 DFB ESS Single-Flush Urinal Fixture

Product Description

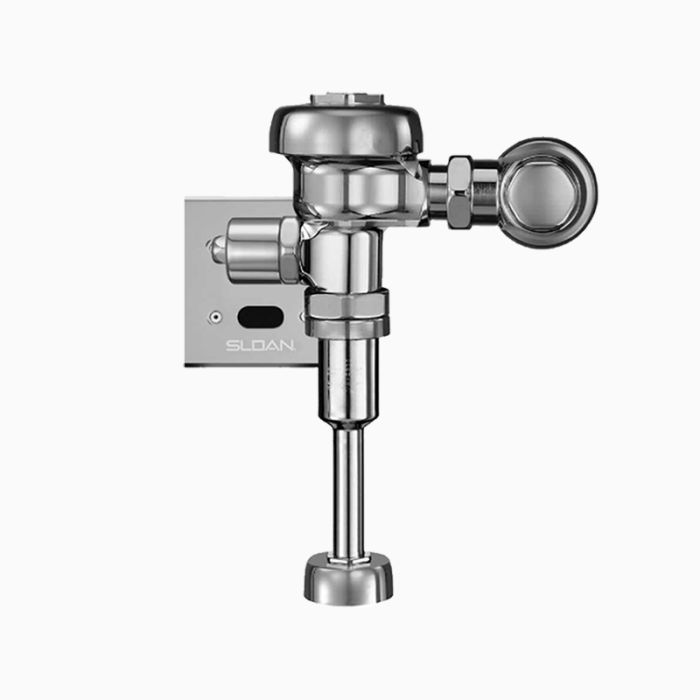

SLOAN 186-1 DFB ESS is a sensor exposed flushometer designed for urinal fixtures. It features the MPN 3772683 from SLOAN VALVE CO. This model is part of the Optima Collection and operates with a hardwired power source.

• Single-flush operation with a flush rate of one gallon per flush.
• Top spud connection and 3/4 inches IPS inlet.
• Constructed with semi-red brass and finished in polished chrome.

Product Highlights

This flushometer supports water conservation and meets ADA compliance with its non-hold-open handle. Its robust design ensures efficiency and durability for long-term use.

Product Information

Standard Information

• Brand: SLOAN VALVE CO
• MPN: 3772683

Technical Specifications

• Collection: Optima
• Connection Location: Top Spud
• Domestic/Import: Domestic
• Finish/Color: Polished Chrome
• Fixture Type: Urinal
• Flush Rate: 1 gpf
• Inlet Size: 3/4 inches IPS
• Material: Semi-Red Brass
• Power Source: Hardwired
• Pressure Rating: 15 to 80 psi
• Rough-In Size: 11-1/2 inches
• Sensor Range: 12 to 32 inches
• Series: 186 ESS
• Spud Coupling: 3/4 inches
• Valve Design: Diaphragm
