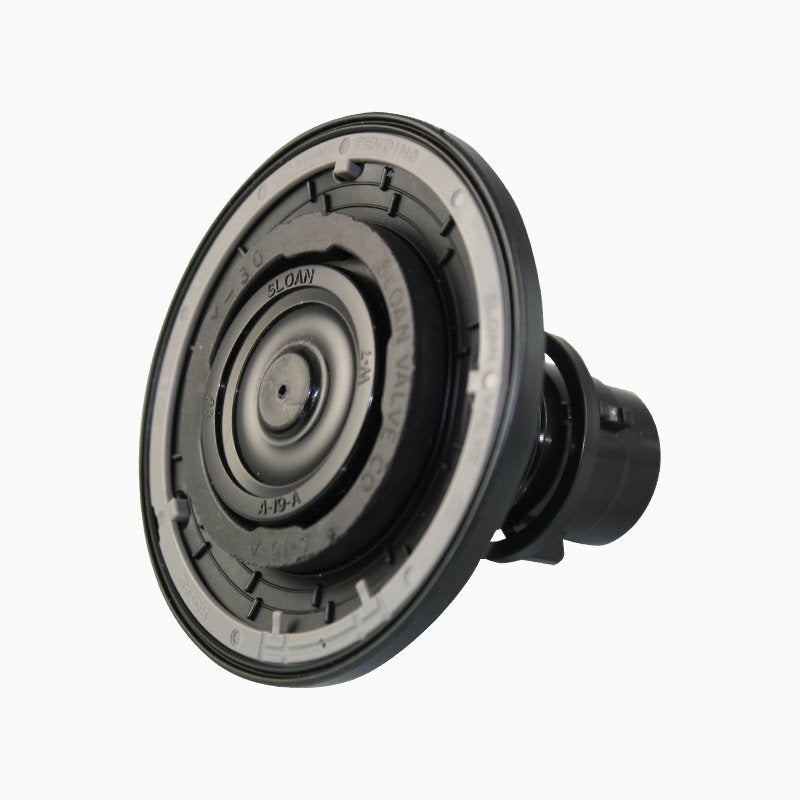

Sloan 3378021 Urinal Flushometer Diaphragm Vortex

Product Description

The SLOAN 3378021 is a synthetic replacement diaphragm with disc designed for Vortex-style urinal flushometers. The diaphragm assembly controls the flush cycle by regulating water flow through the valve body — when it fails or wears, the flushometer may run continuously, fail to flush, or produce an incomplete flush cycle. This part is constructed from synthetic material for durability in high-cycle commercial restroom environments. Licensed plumbers and facility maintenance technicians are the typical installers. At 0.054 pounds, the assembly is compact and straightforward to swap during a standard valve rebuild.

This diaphragm with disc is suited for commercial and institutional urinal flushometer service. It is the correct internal rebuild component for Vortex-type SLOAN urinal valves. Typical applications include restroom fixture maintenance in office buildings, schools, hospitals, and other facilities running SLOAN flushometer-style urinal valves. This part is commonly replaced during a full valve rebuild or when diagnosing continuous-run or no-flush conditions in the valve.

Key Features

• Synthetic construction for extended service life in high-cycle applications
• Includes diaphragm and disc as a complete assembly for efficient rebuild
• Designed for Vortex-style urinal flushometer valve bodies
• Lightweight at 0.054 pounds for easy handling during service calls
• OEM-style replacement maintains original valve performance and flush volume

Compatibility

Designed as an OEM-style replacement diaphragm with disc for SLOAN Vortex urinal flushometer valves.

Installation Notes

Installation should be performed by a licensed plumber or qualified maintenance technician. Shut off the water supply to the flushometer and relieve line pressure before disassembling the valve cover. Handle the synthetic diaphragm carefully to avoid nicks or distortion that could cause improper seating. Work should comply with applicable local plumbing codes and IPC guidelines.

Technical Specifications

• Material: Synthetic
• Weight: 0.054 pounds
• Application: Urinal Flushometer
• Style: Vortex
• UPC: 671254339156

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 3378021
