Sloan 3332004 Piston Repair Kit Urinal 1.0 Gpf

Product Description

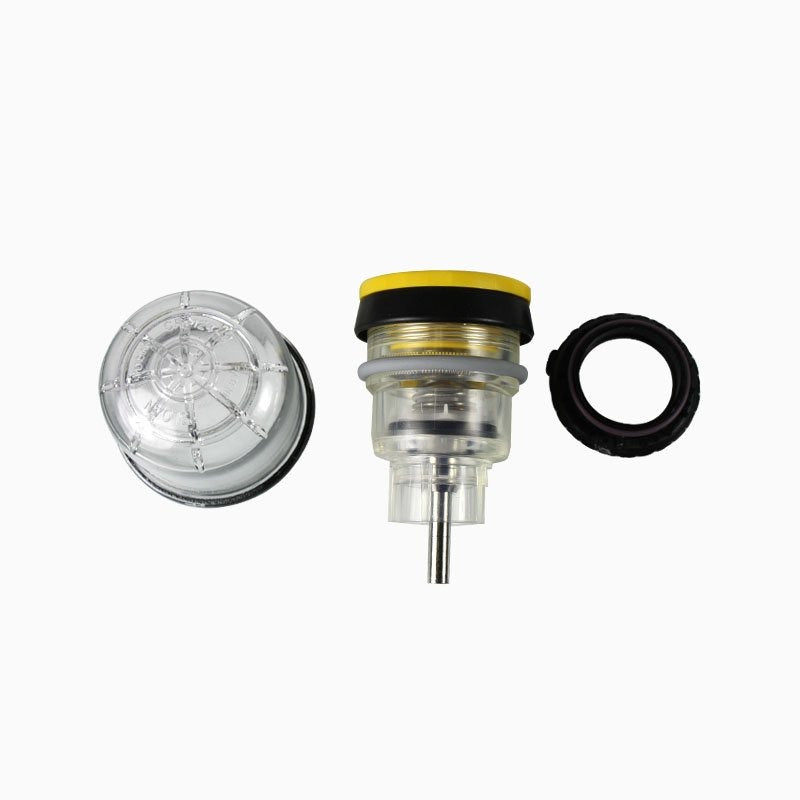

The SLOAN 3332004 is a piston repair kit for Sloan Crown urinal flushometers rated at 1.0 gallons per flush (GPF). The kit provides the internal piston components needed to restore proper flush performance in a worn or malfunctioning flushometer body. Plumbers and commercial restroom service techs use this kit to extend the service life of an existing valve rather than replacing the entire flushometer assembly. It is a direct-fit solution designed for the Crown urinal valve platform operating at 1.0 GPF.

This piston repair kit is used in commercial and institutional restroom applications where Sloan Crown urinal flushometers are installed. Typical settings include office buildings, schools, healthcare facilities, and other high-traffic venues. The kit is suited for a service technician performing a valve rebuild on an existing installation rather than a full fixture replacement. It targets flushometers exhibiting slow closing, continuous running, or failure to flush properly due to worn piston components.

Key Features

• Rated for 1.0 GPF urinal flushometer service
• Designed to rebuild rather than replace the full flushometer body
• Compatible with Sloan Crown urinal valve platform
• Lightweight at 0.226 pounds for easy handling and transport

Compatibility

Designed as an OEM-style piston repair kit for Sloan Crown urinal flushometers rated at 1.0 GPF.

Installation Notes

Installation should be performed by a licensed plumber familiar with commercial flushometer service. Shut off the water supply to the flushometer and flush the line to relieve pressure before disassembling the valve body. Consult local plumbing codes and the IPC for commercial fixture service requirements. Do not overtighten piston components during reassembly, as this can damage seating surfaces and cause leaks.

Technical Specifications

• Flush Rate: 1.0 GPF
• Application: Urinal Flushometer
• Weight: 0.226 pounds
• UPC: 671254272330

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 3332004
