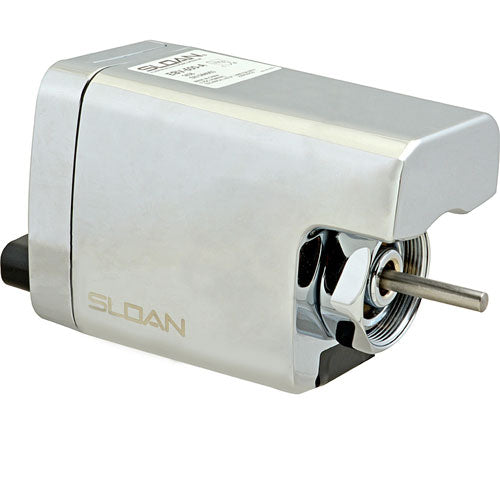

Sloan 3325500 EBV500A single-flush retrofit kit

Product Description

The Sloan® 3325500 is a single-flush retrofit kit designed for urinal and water closet flushometers. This battery-operated flushometer provides automatic activation using an infrared sensor. It is compliant with ADA standards and features a non-hold-open true mechanical override for manual flush operation.

• Battery-powered with estimated three-year life
• 72-hour sentinel flush mode
• Suitable for both urinal and water closet installations

Product Highlights

Ideal for upgrades in commercial settings, this flushometer ensures efficient water usage while maintaining optimal hygiene.

Product Information

Standard Information

• Manufacturer: Sloan Valve Company
• Power Source: Battery (includes four size C alkaline batteries)

Technical Specifications

• Model: EBV500A
• Finish: Polished Chrome
• Flow Rate: 1.6 Gallons Per Flush (GPF)
• Pressure Rating: 15 to 80 PSI
• Sensor Range: 22 to 42 inches
• Weight: 3.43 pounds
• Dimensions: Length 9 inches, Width 6 inches, Height 5.25 inches
• Connection Type: Top spud
