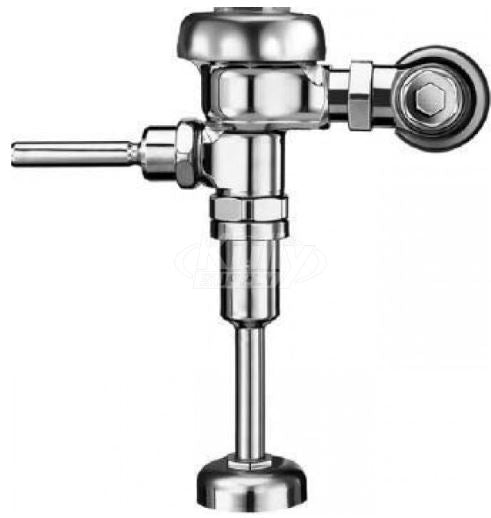

Sloan 186-1 Regal Xl Manual Urinal Flushometer 1 Gpf

Product Description

The SLOAN 186-1 REGAL XL is a single-flush manual exposed flushometer designed for urinal fixtures in commercial and institutional plumbing applications. Built from semi-red brass with a polished chrome finish, this diaphragm-style valve delivers a consistent 1 gallon-per-flush (gpf) flush rate through a top spud connection. It accepts a 3/4-inch IPS inlet and operates across a working pressure range of 15 to 80 psi. The non-hold-open oscillating handle mechanism provides reliable manual actuation without accidental sustained flow. Licensed plumbers install this unit as part of an exposed rough-in assembly in restroom facilities.

This flushometer is suited for commercial restroom installations where exposed valve trim is acceptable or preferred. The top spud connection configuration fits standard urinal rough-in layouts. The polished chrome finish meets typical commercial fixture aesthetic requirements. This valve is ADA compliant, BAA compliant, and cUPC listed, making it appropriate for federally funded projects and installations requiring Buy American Act compliance. It is domestically manufactured and falls within the manual flush valve category for specification purposes.

Key Features

• 1 gpf single-flush rating for urinal fixtures
• 3/4-inch IPS inlet for standard supply line connection
• Operating pressure range of 15 to 80 psi
• Diaphragm-type valve with non-hold-open oscillating handle
• Top spud connection location for urinal rough-in compatibility
• Semi-red brass construction with polished chrome finish
• ADA compliant, BAA compliant, and cUPC listed

Compatibility

Designed as an OEM-specification manual exposed flushometer for commercial urinal fixtures with a top spud connection and 3/4-inch IPS supply inlet.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off the water supply and relieve line pressure before beginning any work on the valve or supply line. Verify inlet pressure falls within the 15 to 80 psi operating range before commissioning. Do not overtighten spud coupling connections on the urinal fixture body.

Technical Specifications

• Flush Rate: 1 gpf
• Inlet Size: 3/4 inch IPS
• Operating Pressure: 15 to 80 psi
• Connection Location: Top Spud
• Valve Type: Diaphragm
• Actuator Type: Non-Hold-Open Oscillating Manual Handle
• Flush Type: Single-Flush
• Material: Semi-Red Brass
• Finish: Polished Chrome
• Certifications: ADA Compliant, BAA Compliant, cUPC Listed, ASSE 1037 Compliant
• Origin: Domestic

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 186-1 REGAL XL
