Sloan 1171009 SU1009-STG Urinal Fixture ASM TS Univ

Product Description

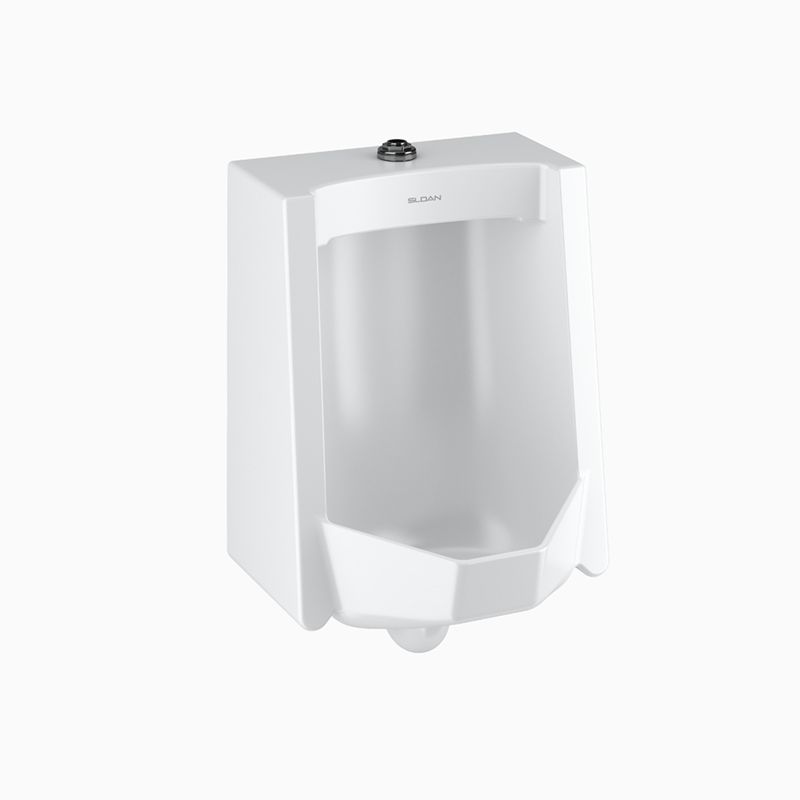

The Sloan 1171009 is a urinal fixture designed for wall mounting. It has a washdown flushing action and can accommodate flush rates of zero point one two five gallons per flush or zero point five gallons per flush. The top spud inlet is three quarter inches, making it a suitable choice for a variety of plumbing applications.

• Vitreous china construction for durability
• Thorough washdown flushing capability
• ADA compliant design

Product Highlights

The Sloan 1171009 urinal fixture features a universal design that maximizes compatibility with Sloan flushometers.

Product Information

Standard Information

• Brand: Sloan Valve Co
• MPN: 1171009

Technical Specifications

• Dimensions: 361.95 mm D x 647.7 mm H
• Material: Vitreous China
• Flush Rate: 0.125/0.5 gpf
• Inlet Spud Size: 3/4 inch IPS
• Spud Location: Top
• Working Pressure: 25 to 80 psi
• Compliance Standards: ADA Compliant, cUPC Listed, WaterSense Listed, IAPMO Listed to meet ANSI/ASME A112.19.2 and CSA B45.1 Standards
