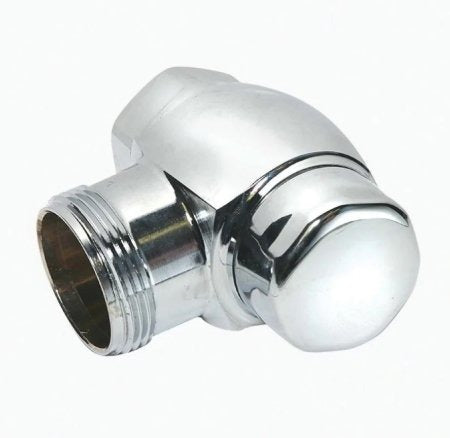

Sloan 0388024 Angle Stop Assembly 1 Inch Ground Joint

Product Description

The SLOAN 0388024 is an angle stop assembly designed for use with Sloan Royal flush valve systems. This component controls the water supply to the flush valve, allowing the flow to be shut off at the fixture for service or adjustment without interrupting the main supply line. The ground joint design provides a reliable, leak-resistant seal at the valve connection. Sized at 1 inch, this stop assembly is installed by licensed plumbers during new construction, renovation, or flush valve service work on commercial restroom fixtures.

This angle stop assembly is used in commercial plumbing installations where Sloan Royal flush valves are specified. Typical applications include water closets and urinals in high-traffic restroom environments such as schools, office buildings, hospitals, and other commercial facilities. The angle configuration routes the supply line at 90 degrees, making it suitable for wall-supplied water connections where the supply stub-out is horizontal and the flush valve inlet is vertical.

Key Features

• 1-inch inlet size matches standard Sloan Royal flush valve supply requirements
• Ground joint connection provides a metal-to-metal seal for reliable shutoff at the valve
• Angle body configuration accommodates wall-mounted supply rough-in
• Serviceable design allows flush valve maintenance without shutting off the main line
• Compatible with commercial flush valve installations requiring a local shutoff point

Compatibility

Designed for use with Sloan Royal flush valve systems requiring a 1-inch angle stop with a ground joint supply connection.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off the main water supply and relieve line pressure before removing or replacing the stop assembly. Use appropriate thread sealant or packing as required by the joint type. Do not overtighten the ground joint nut, as this can damage the seating surface and cause leaks.

Technical Specifications

• Connection Size: 1 inch
• Body Configuration: Angle
• Joint Type: Ground Joint
• Weight: 1.279 pounds

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 0388024
