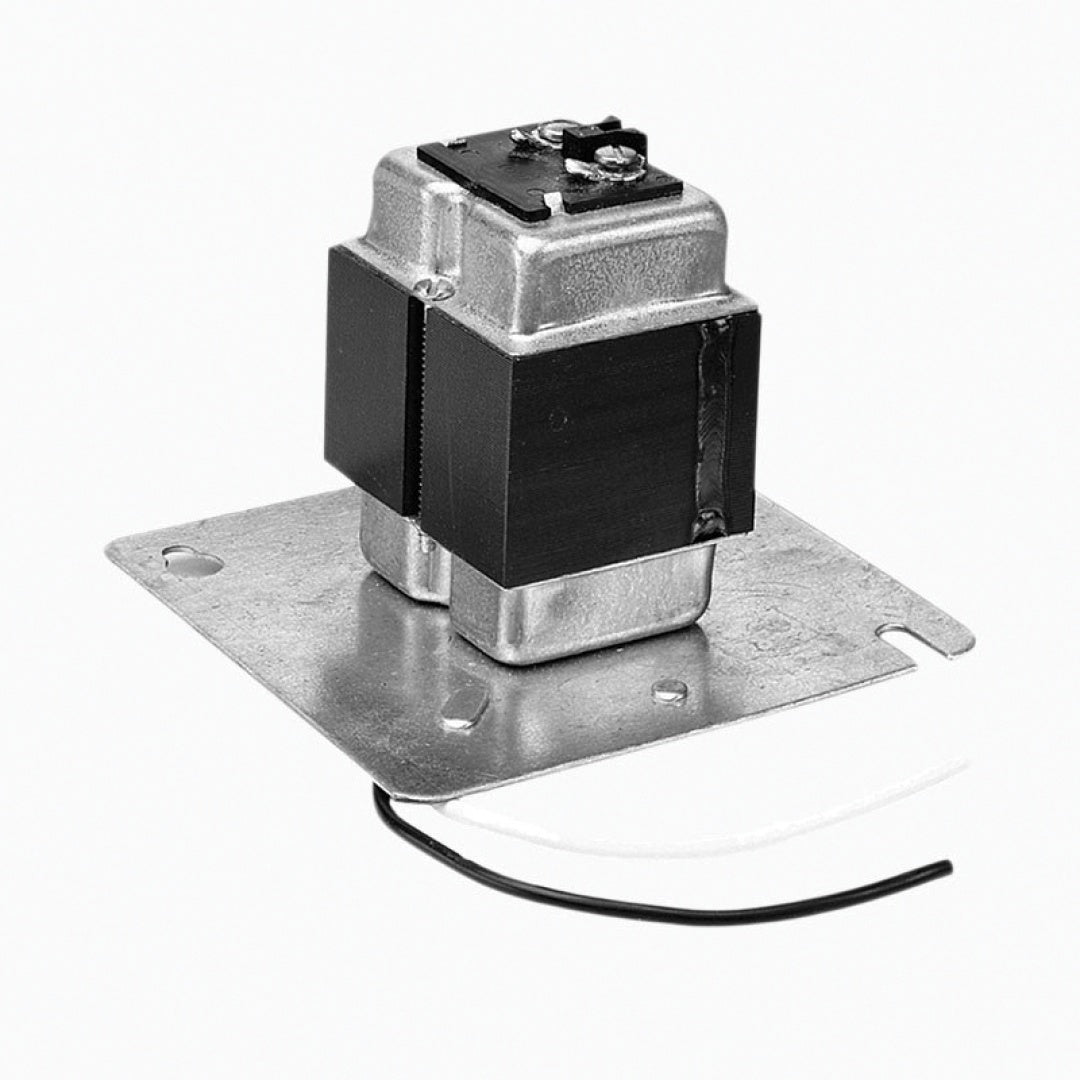

Sloan 0345154PK EL154 Transformer 24 Volt Plate Mount

Product Description

Sloan EL154 Transformer, MPN 0345154PK, is designed for use with Sloan Optima PWT systems. This transformer operates with a primary voltage of one hundred twenty VAC and outputs twenty-four VAC. It can accommodate multi-combination units including urinals, water closets, lavatories, and showers. The transformer is built with a compact design, measuring four and one-quarter inches by four and one-quarter inches by three and one-eighth inches, making it suitable for various installations.

• Input Voltage: 120 VAC
• Output Voltage: 24 VAC
• Power Rating: 50 VA

Product Highlights

This transformer is compliant with Class II and UL standards, ensuring safety and reliability in commercial plumbing applications.

Product Information

Standard Information

• Brand: Sloan Valve Co
• Type: Transformer

Technical Specifications

• Model: EL-154
• Material: Metal
• Finish/Color: Silver
• Dimensions: 4-1/4 in L x 4-1/4 in W x 3-1/8 in H
• Applications: Supports up to 10 OPTIMA ES-S flushometers in different combinations
• Frequency Rating: 50/60 Hz
• Domestic/Import: Import
