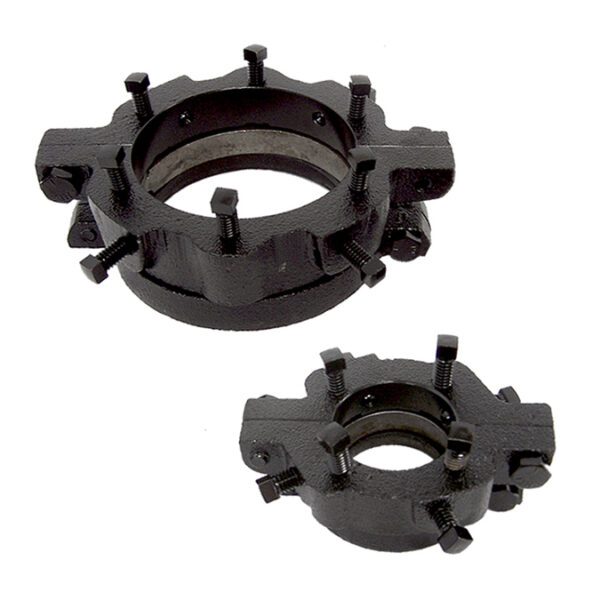

SKINNER 089862 Pipe Joint Clamp

Product Description

The SKINNER 089862 Pipe Joint Clamp is designed to prevent leaks at pipe and fitting connections. This clamp can be installed without shutting down service, making it efficient for ongoing operations. It uses a sliding push ring to apply pressure from the thrust screws to the Neoprene gasket, sealing the threads to eliminate leaks. This product is suitable for various applications including gas, oil, gasoline, water, ammonia, and brine.

• Stops leaks at joints between pipes and fittings.
• Installs quickly even under pressure.
• Includes a durable Neoprene gasket for effective sealing.

Product Highlights

The SKINNER Pipe Joint Clamp is ideal for professionals needing a reliable leak solution in diverse fluid handling applications.

Product Information

Standard Information

• Brand: SKINNER
• MPN: 089862

Technical Specifications

• Body Material: Iron
• Gasket Material: Neoprene Material Grade K2242 ASTM D2000/SAE J200
• Gasket Temperature Range: -40°F to 250°F
• Gasket Durometer: 45 ±5
• Gasket Tensile Strength: 1200
• Gasket Elongation: 300%
• Hardware Material: SAE Grade 5, Zinc Plated C-1541 Steel
• Hardware Coating: E Coating, JDM F11T3 18 Mill Thickness
• Pipe Size: One half inch to six inches
• Length: Two and one half inches
• Width: Eleven fourths to thirteen fourths
• Overall Diameter: Thirty one fourths to ninety three fourths
