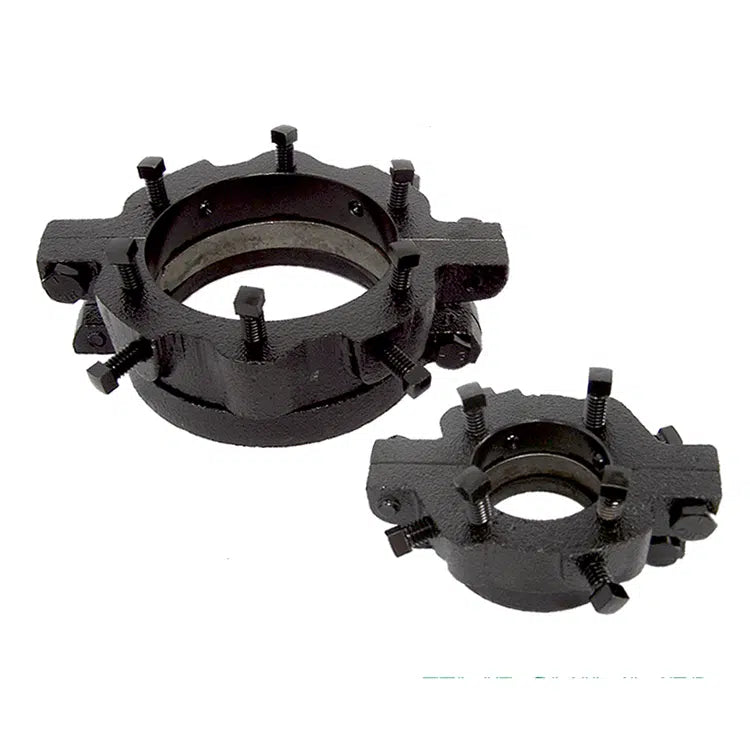

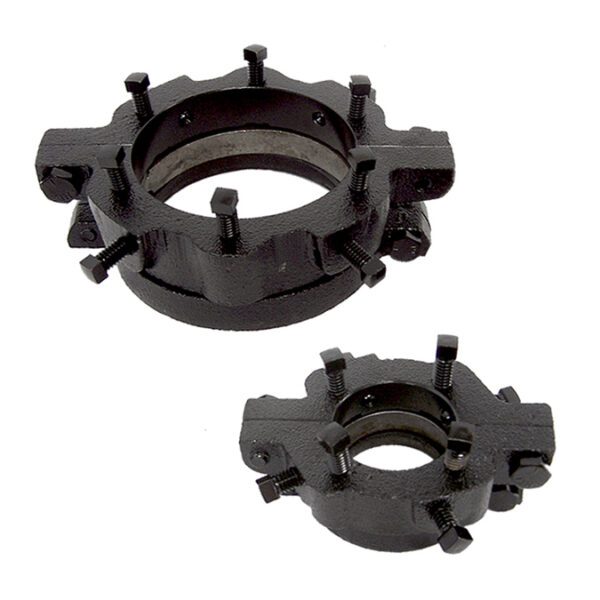

SKINNER 089860 Pipe Joint Clamp

Product Description

The SKINNER 089860 Pipe Joint Clamp is suitable for sealing leaks at pipe and fitting connections. With the ability to be installed under pressure, it ensures continuous service without interruptions. The clamp uses a sliding push ring that efficiently transfers pressure to the gasket, forcing it into the threads to effectively stop leaks. It is compatible for use in environments such as gas, oil, gasoline, water, ammonia, and brine.

• Stops leaks at joints where pipe and fitting join.
• Quickly installs under pressure.
• Features a Neoprene gasket.

Product Highlights

This clamp aids in preventing fluid leakage in various applications, ensuring reliability and safety.

Product Information

Standard Information

• Brand: SKINNER
• MPN: 089860

Technical Specifications

• Body Material: Iron
• Gasket Material: Neoprene Material Grade K2242 ASTM D2000/SAE J200
• Gasket Temperature Range: -40 degrees Fahrenheit to 250 degrees Fahrenheit
• Hardware Material: SAE Grade 5, Zinc Plated C-1541 Steel
• E Coating: JDM F11T3 18 Mill Thickness
• Pipe Size: One and a half inches to six inches
• Length: Two and twenty-one hundredths inches
• Width: Eleven hundredths inches to thirteen hundredths inches
• Overall Diameter: Thirty-one hundredths inches to ninety-three hundredths inches
