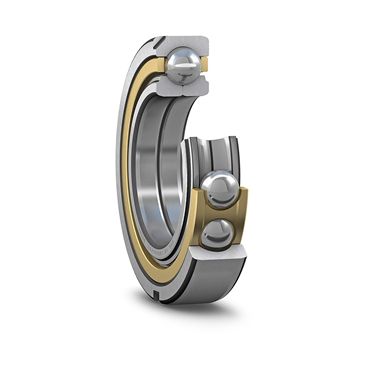

SKF QJ316N2MA/C3 Cylindrical Bore Angular Contact Ball Bearing

Product Description

The SKF QJ316N2MA/C3 is a cylindrical bore angular contact ball bearing designed for use in applications requiring simultaneous radial and axial loads. This bearing features a robust inner and outer ring raceway that enhances performance under varying load conditions.

• Compatible with both radial and axial loads
• Increases axial load capacity with the contact angle
• Constructed from high-quality bearing steel

Product Highlights

This product offers effective load handling and is suitable for various industrial applications.

Product Information

Standard Information

• Brand: SKF
• MPN: QJ316N2MA/C3

Technical Specifications

• Inner Diameter: 3.15 inches
• Outer Diameter: 6.69 inches
• Width: 1.54 inches
• Weight: 10.12 lbs
• Maximum RPM: 7000
• Bore Type: Straight
• Contact Angle: 35 degrees
• Cage Material: Brass
• Material: Steel
• Precision Rating: ABEC 1
• Load Capacity (Radial Static): 228 kN
• Load Capacity (Radial Dynamic): 232 kN
