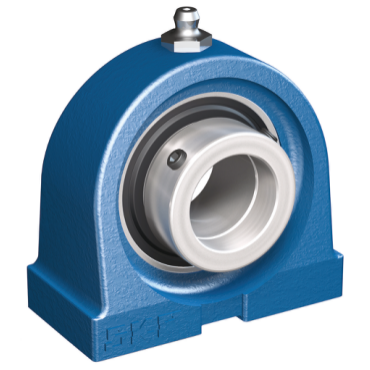

SKF P2BT 100-TF Standard-Duty Cast Iron Tapped Base Pillow Block

Product Description

SKF P2BT100-TF is a standard-duty cast iron tapped base pillow block. It is designed to support radial loads effectively. This pillow block features a compact design, ideal for tight spaces.

• Tapped base design for easy mounting
• Compatible with standard-duty applications
• Durable cast iron construction

Product Highlights

The SKF P2BT100-TF pillow block is engineered for durability and reliability. It is perfect for various applications in industrial settings.

Product Information

Standard Information

• Brand: SKF
• MPN: P2BT100-TF

Technical Specifications

• Overall Width: 1.5 inches
• Locking Device: Setscrew Locking Collar
• Bearing Type: Ball Bearing
• Inner Ring: Wide
• Dynamic Capacity: 3150 lbf
• Sealing: Seal on Both Sides
• Bolt Size: 3/8 inches
• Shaft Diameter: 1 inch
• Bearing Insert: YAR
• Housing Length: 3 inches
• Mounted Unit Duty: Standard-Duty
• Series: P2BT
• Housing Material: Cast Iron
• Size Code: 100
• Weight: 1.213 pounds
• EAN or UPC: 7316577416278
