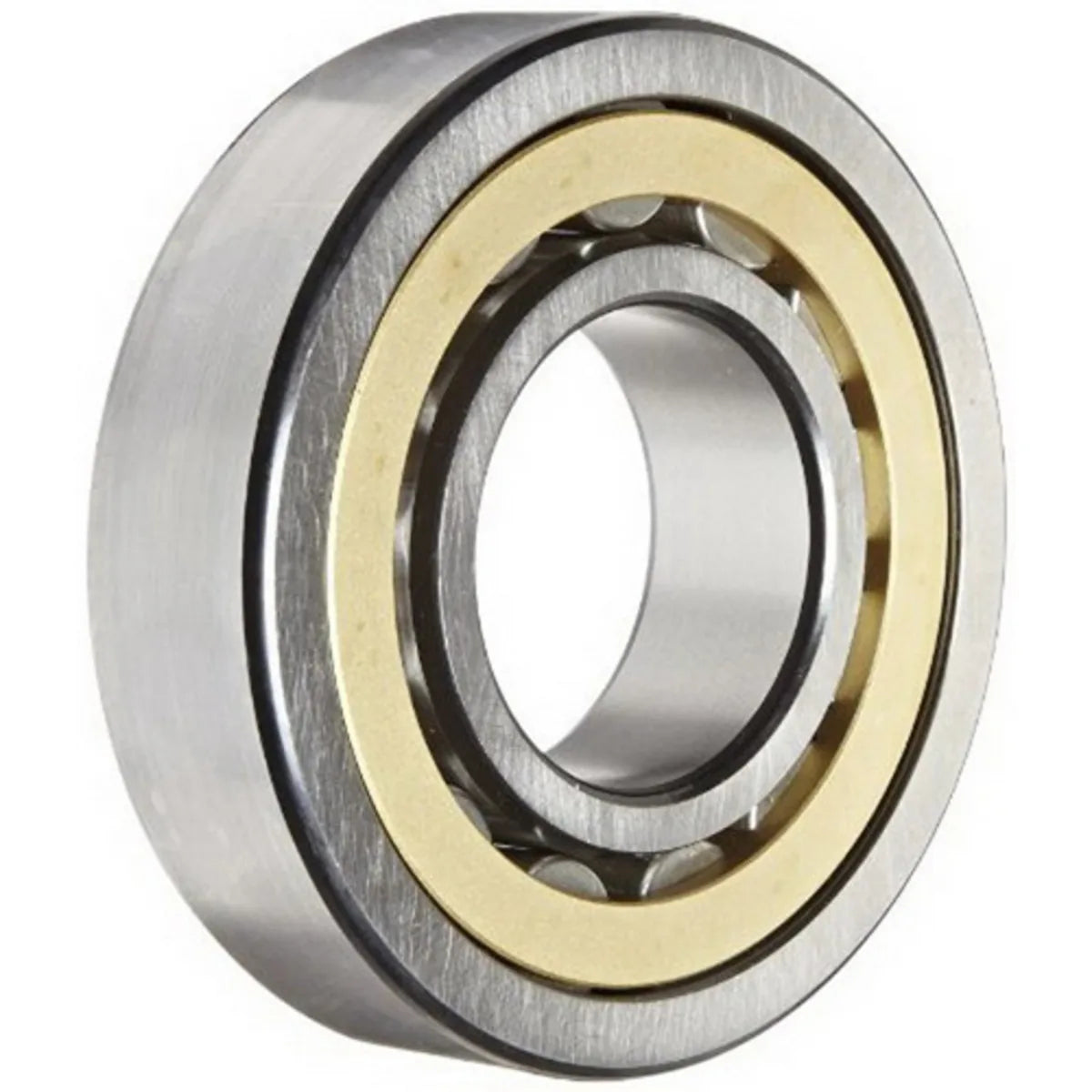

SKF NU313ECM/C3 Cylindrical Roller Bearing, 65 mm Bore x 140 mm OD x 33 mm W

Product Description

The SKF NU3 Series Cylindrical Roller Bearing with MPN NU313ECM/C3 features a bore diameter of sixty-five millimeters and an outer diameter of one hundred forty millimeters. This single row bearing is suitable for various industrial applications. It is designed to handle heavy radial loads and operate efficiently at high speeds.

• High-capacity design for increased performance.
• Durable machined brass cage offers optimal support.
• Designed for high load carrying capacity and low friction.

Product Highlights

This bearing operates under C3 clearance and supports a maximum speed of six thousand revolutions per minute. Its robust design can accommodate heavy radial loads and rapid accelerations.

Product Information

Standard Information

• Brand: SKF BEARINGS
• Manufacturer Part Number: NU313ECM/C3

Technical Specifications

• Bore Diameter: 65 mm
• Outside Diameter: 140 mm
• Width: 33 mm
• Radial Internal Clearance: 3 mm
• Dynamic Load Capacity: 212000 N
• Static Load Capacity: 196000 N
• Fillet Radius: 2 mm
• Speed Rating: 6000 rpm Limiting, 5300 rpm Reference
