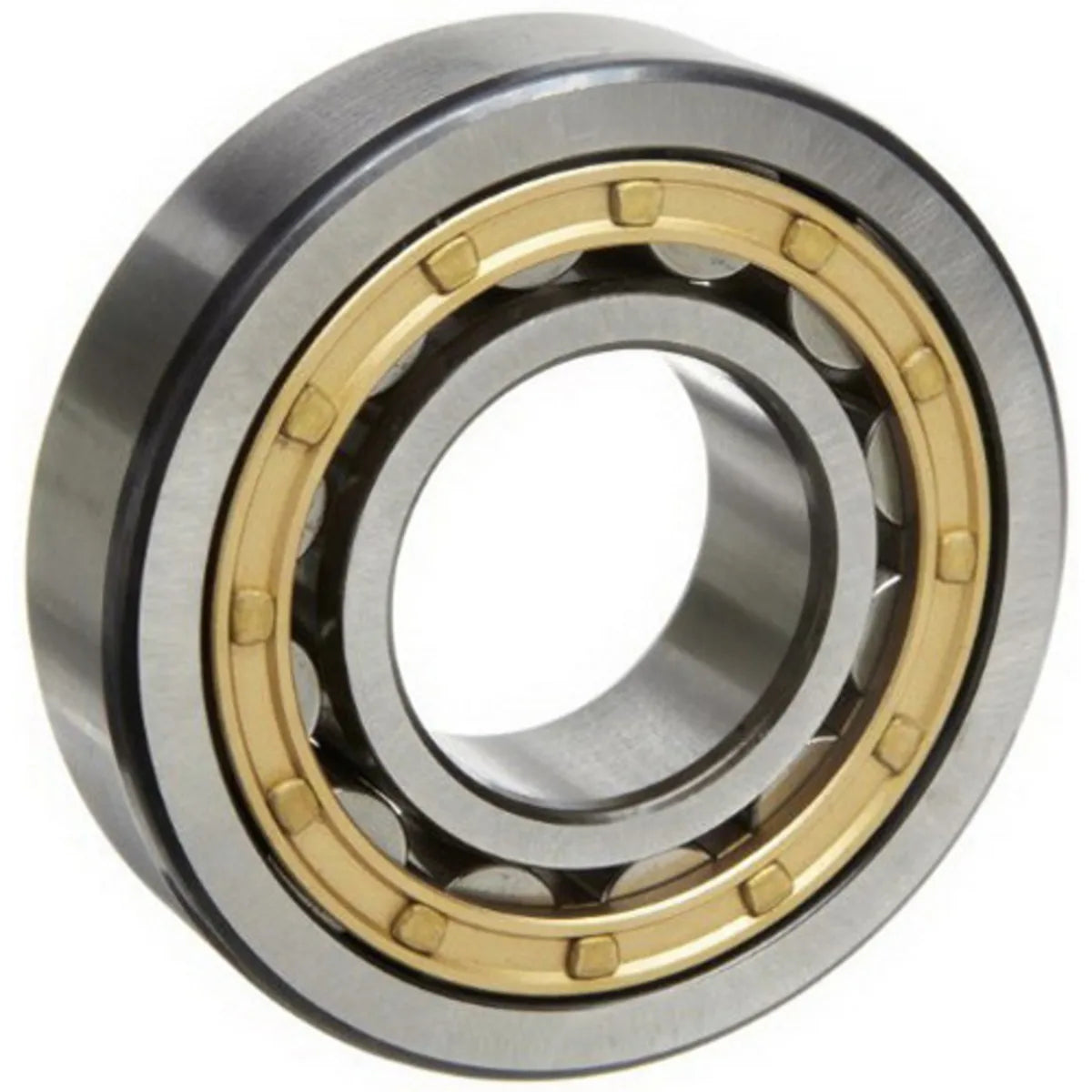

SKF NU217ECM/C3 Single Row Cylindrical Roller Bearing, 85 mm Bore x 150 mm OD x 28 mm W

Product Description

The SKF NU217ECM/C3 is a single row cylindrical roller bearing designed for heavy radial loads. With a bore diameter of eighty-five millimeters, an outside diameter of one hundred fifty millimeters, and a width of twenty-eight millimeters, this bearing is suitable for various industrial applications. It features a machined brass cage, which enhances durability and performance, particularly at high speeds.

• High load carrying capacity up to two hundred thousand Newtons.
• Compatible with rapid accelerations.
• C3 internal clearance allows for optimal operation at high speeds.

Product Highlights

This bearing combines high load capacity with high-speed capability. It is suitable for large industrial applications where durability is crucial.

Product Information

Standard Information

• Brand: SKF BEARINGS
• Part #: NU217ECM/C3

Technical Specifications

• Bore Diameter: 85 mm
• Outside Diameter: 150 mm
• Width: 28 mm
• Cage Material: Machined Brass
• Dynamic Load Capacity: 190000 N
• Static Load Capacity: 200000 N
• Speed Rating: 5300 rpm Limiting, 4800 rpm Reference
• Number of Rows: 1
• Weight: 2.15 kg
