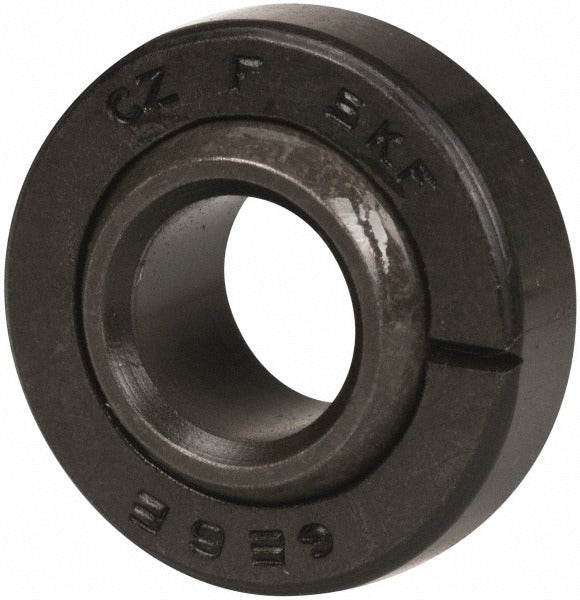

Skf Ge 6 E Spherical Plain Bearing 6mm Bore 765 Lb

Product Description

The SKF GE 6 E is a spherical plain bearing designed for applications that require angular misalignment compensation under radial and axial loads. The bearing features a 6mm bore diameter and an overall width of 6mm (0.236 inches), making it a compact solution for light-duty mechanical assemblies. It carries a dynamic load capacity of 765 pounds and a static load capacity of 3,825 pounds. The unsealed design uses a steel raceway and is grease-lubricated. Millwrights, maintenance technicians, and mechanical assemblers install this type of bearing in linkage systems, pivot points, and machine frames where shaft alignment cannot be guaranteed.

This bearing is suited for use in industrial and light commercial mechanical assemblies where angular movement must be accommodated at a fixed pivot or articulating joint. Its compact 6mm bore size fits smaller pin and shaft arrangements found in actuators, tie rods, conveyor pivot mounts, and similar mechanisms. The grease-lubricated, unsealed construction works well in clean, controlled environments where periodic relubrication access is available. Install clearances and load cycles should be verified against the application's design requirements prior to fitment.

Key Features

• 6mm (0.236 inch) bore diameter for small-pin and shaft applications
• 765 pound dynamic load capacity for moderate radial and axial service
• 3,825 pound static load capacity for high-load stationary conditions
• Maximum ball swivel angle of 13 degrees accommodates angular misalignment
• Steel raceway construction for durability under mechanical loading
• Grease-lubricated, unsealed design for use in clean operating environments

Compatibility

Designed as an OEM-style replacement or new-installation spherical plain bearing in small-bore mechanical linkage and pivot assemblies requiring angular misalignment capability.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. The housing bore and mating pin or shaft should be measured and confirmed to match bearing tolerances before pressing or inserting the bearing. Do not exceed the rated swivel angle or load capacity in service. Ensure the joint is relubricated at intervals appropriate to the duty cycle and environment.
