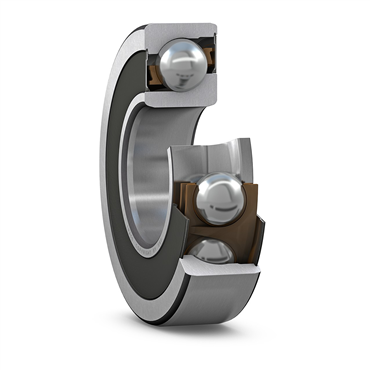

SKF 7305BE-2RZP Single Row Cylindrical Bore Angular Contact Ball Bearing

Product Description

The SKF 7305BE-2RZP is a single row cylindrical bore angular contact ball bearing. It features a high-quality bearing steel construction and is designed for various applications where precision and durability are essential. This unmounted bearing is suitable for both metric and inch measurements, with an inner diameter of zero point ninety-eight inches and an outer diameter of two point forty-four inches.

• Inner Diameter: 0.98 inches
• Outer Diameter: 2.44 inches
• Width: 0.67 inches

Product Highlights

This angular contact bearing is designed to handle both radial and axial loads in one direction, making it ideal for applications with heavy loads and high speeds.

Product Information

Standard Information

• Brand: SKF
• Part Number: 7305BE-2RZP

Technical Specifications

• Duplex Type: Single
• Material: Bearing Steel
• Width: 0.67 in, 17 mm
• Bearing Type: Unmounted, Angular Contact
• Inner Ring Width: 0.67 in, 17 mm
• I.D.: 0.98 in, 25 mm
• Cage Material: Polyamide
• O.D.: 2.44 in, 62 mm
• Seal Material: Nitrile Rubber (NBR)
• Seal Type: Non-Contacting Seal
• Contact Angle: 40 Degree
• Lubricant: Grease
• Weight: 0.529 lb
• EAN or UPC: 7316575924430
