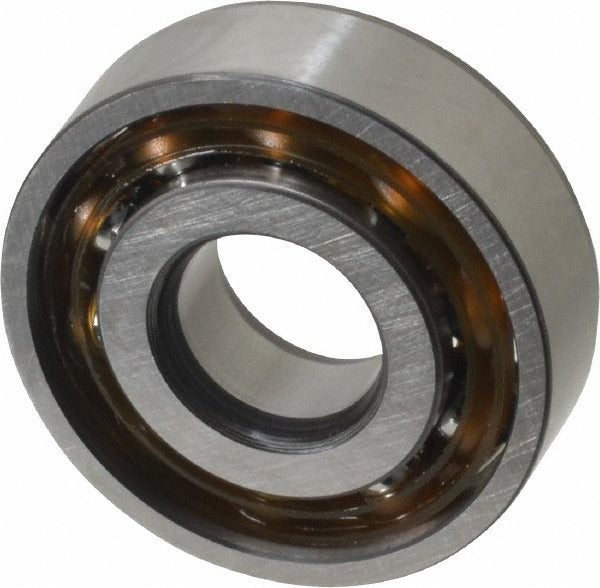

Skf 7201 Becbp Angular Contact Ball Bearing 12mm Bore

Product Description

The SKF 7201 BECBP is a single-row angular contact ball bearing designed for applications that combine radial and axial loads in one direction. It features a 40-degree contact angle, which allows it to handle significant thrust loads alongside radial forces. With a dynamic load capacity of 7,610 pounds and a static load capacity of 3,800 pounds, this bearing is built for demanding rotational applications. The plastic cage keeps the balls evenly spaced and contributes to smooth operation at high speeds, with a maximum rated speed of 26,000 RPM. Licensed HVAC technicians, mechanical contractors, and industrial maintenance professionals typically work with bearings of this type during motor, pump, and gearbox service.

This bearing suits a wide range of light industrial and mechanical applications where combined axial and radial load handling is required in a compact envelope. The 12 mm bore diameter and 32 mm outside diameter make it appropriate for small-to-medium shaft assemblies in pumps, compressors, fans, and precision machine spindles. Its open style allows for external lubrication in service environments where relubrication is part of the maintenance routine. The single-row design fits standard bearing housing configurations commonly found in residential and light commercial HVAC equipment as well as general industrial machinery.

Key Features

• 40-degree contact angle for combined radial and axial load capacity
• 7,610 lb dynamic load capacity and 3,800 lb static load capacity
• Maximum rated speed of 26,000 RPM for high-speed applications
• Plastic cage for consistent ball spacing and low friction
• Open style supports field relubrication during maintenance
• ABEC-3 (P6) and ABEC-5 (P5) precision ratings for dimensional and running accuracy

Compatibility

Designed as an OEM-style replacement single-row angular contact ball bearing for shafts with a 12 mm bore diameter in pumps, compressors, fans, and precision spindle assemblies requiring a 32 mm outside diameter bearing seat.

Installation Notes

Installation should be performed by a qualified mechanical technician using proper bearing press tooling or a bearing installation kit - never drive a bearing into place by striking the outer ring when pressing onto a shaft. Disconnect and lock out all power to the equipment before removing the existing bearing. After installation, verify shaft endplay and housing fit per the equipment manufacturer's specifications before returning the unit to service.
