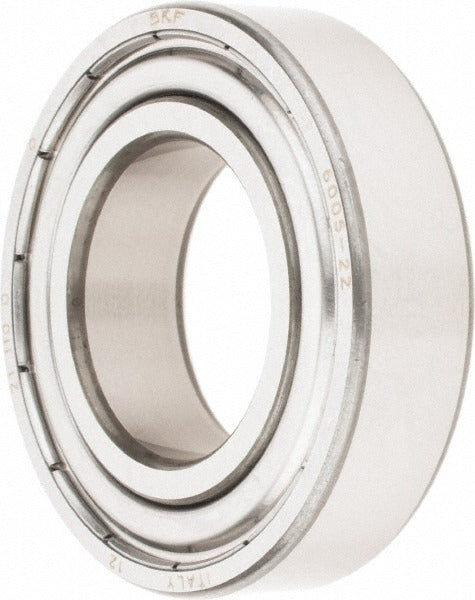

Skf 6005-2Z Deep Groove Ball Bearing Double Shield

Product Description

The SKF 6005-2Z is a single-row deep groove ball bearing designed for high-speed rotating applications in industrial and mechanical equipment. It features a double-shield design that retains grease and blocks contaminants without requiring external sealing hardware. The bearing has a 25 mm bore, a 47 mm outside diameter, and a 12 mm overall width. With a maximum rated speed of 32,000 RPM and an ABEC-1 precision rating, this bearing suits a wide range of motors, pumps, fans, and drive assemblies. The steel cage construction provides reliable ball retention under continuous load.

This bearing is used in light to medium-duty rotating equipment across HVAC, electrical motor, pump, and industrial drive applications. Common install scenarios include end-bell and mid-frame motor bearing replacements, blower wheel shaft assemblies, and centrifugal pump bearing supports. The round bore accepts standard 25 mm shafts. It is appropriate for both OEM production builds and field replacement work by mechanical service technicians.

Key Features

• Double-shield design retains grease and resists contaminant ingress without external seals
• Single-row configuration handles radial loads with compact axial footprint
• Steel cage provides consistent ball spacing under high-speed and continuous-duty conditions
• Maximum rated speed of 32,000 RPM suits motors, fans, and pump applications
• ABEC-1 tolerance class meets standard industrial replacement requirements
• Grease-lubricated from factory - no additional lubrication required at installation

Compatibility

Designed as an OEM-style replacement for single-row deep groove ball bearing applications requiring a 25 mm bore, 47 mm outside diameter, and 12 mm width in the 6005 series.

Installation Notes

Installation should be performed by a qualified mechanic or service technician familiar with bearing press-fit procedures. Always power down and lock out the equipment before removing the old bearing. Use a proper bearing press or driver tool to seat the bearing evenly on the shaft and in the housing bore - never strike the bearing directly with a hammer. Consult applicable equipment service manuals for shaft and housing tolerance specifications before installation.
