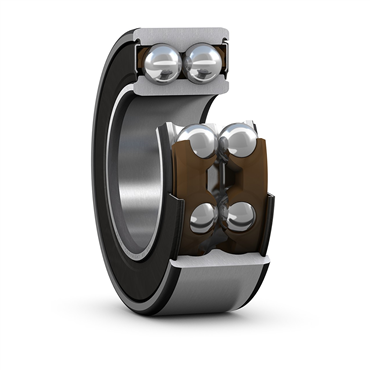

SKF 3200A-2RS1TN9 Double Row Cylindrical Bore Angular Contact Ball Bearing

Product Description

The SKF 3200A-2RS1TN9 is a double row cylindrical bore angular contact ball bearing designed for high durability and reliability. This bearing features a bore diameter of ten millimeters and an outer diameter of thirty millimeters, making it suitable for various applications that require stability and performance.

• Unmounted ball bearing design for easy installation
• Contact seal on both sides for protection against contaminants
• Angular contact design suited for axial loads

Product Highlights

This bearing type is ideal for applications demanding high speed and precision. Its unique construction supports axial loads in both directions, and the seal on both sides enhances longevity by reducing wear.

Product Information

Standard Information

• Brand: SKF
• MPN: 3200A-2RS1TN9

Technical Specifications

• Bore Diameter: 10 mm
• Outside Diameter: 30 mm
• Width: 0.5625 in
• Contact Angle: 30 degrees
• Weight: 0.12 lbs
• Max RPM: 17000 rpm
• Operating Temperature Range: -40 to +210 degrees Fahrenheit
• Radial Dynamic Load Capacity: 7.61 kN
