Sje-Rhombus 1003271 PumpMaster Plus Series Wide Angle Pump Switch 30 ft Cord

Product Description

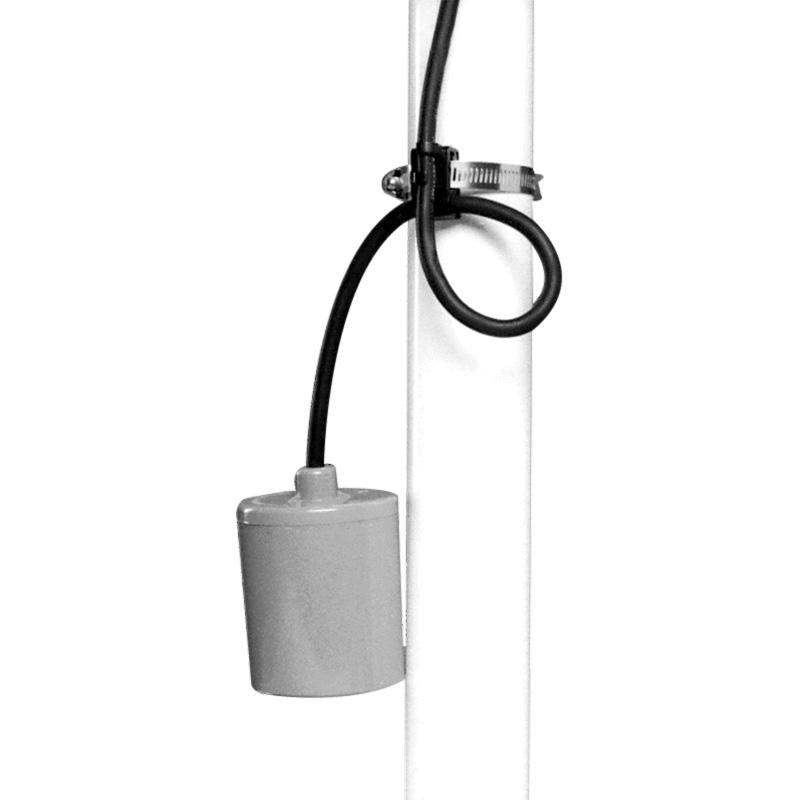

The SJE-RHOMBUS 1003271 is a mechanically-activated, wide-angle switch designed for direct control of pumps up to 3/4 HP at 120 VAC or up to 2 HP at 230 VAC. The SJE PumpMaster pump switch is not sensitive to rotation or turbulence allowing it to be used in both calm and turbulent applications.

• For use with 50/60 Hz, single phase pumps up to 3/4 HP at 120 VAC or up to 2 HP at 230 VAC within specified amp ratings below
• Heavy duty contacts
• Adjustable pumping range of 7 to 36 inches

Product Highlights

This wide angle pump switch is ideal for sewage and non-potable water applications. It features heavy-duty contacts and an adjustable pumping range.

Product Information

Standard Information

• Brand: SJE-RHOMBUS
• Manufacturer Part Number: 1003271

Technical Specifications

• Brand: SJE-Rhombus
• Mfg. Number: 1003271
• Model: 30PMPDWOP
• Series: PumpMaster Plus
• Product Type: Wide angle pump switch
• Application: Sewage/non-potable water
• Voltage: 120 VAC or 230 VAC
• Max Pump Run Current: 15 Amps
• Max Pump Start Current: 85 Amps
• Circuit Type: Normally open
• Adjustable Pumping Range: 7" to 36"
• Plug Type: Bare leads
• Mounting Clamp: Yes
• Float Diameter: 3.05"
• Float Length: 3.56"
• Cord Length: 30 ft
• Manufacturer: SJE-Rhombus
• Suitable For Use With: Pumps up to 3/4 HP at 120 V and 2 HP at 230 VAC
• Voltage Rating: 120 V
• Amperage Rating: 15/85 A
• Contact Configuration: NO
• Frequency Rating: 50/60 Hz
• HP Rating: 3/4, 2 hp
• Phase: 1
• Maximum Pump Running Current (120 VAC): 13 amps
• Maximum Pump Starting Current (120 VAC): 85 amps
• Recommended Pump HP (120 VAC): 1/2 HP or less
• Maximum Pump Running Current (230 VAC): 13 amps
• Maximum Pump Starting Current (230 VAC): 85 amps
• Recommended Pump HP (230 VAC): 1 HP or less
