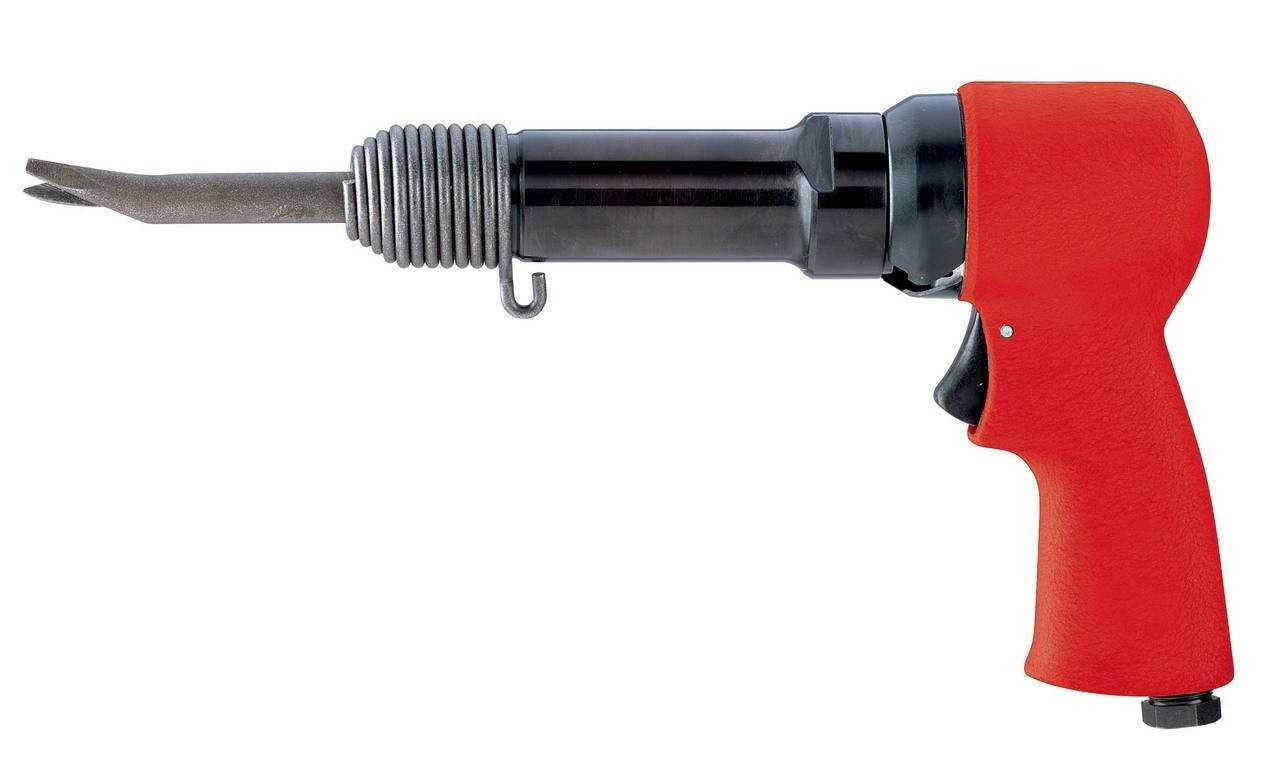

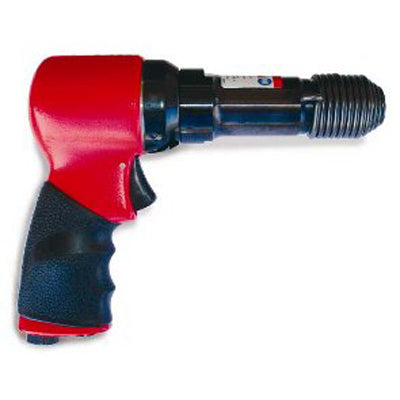

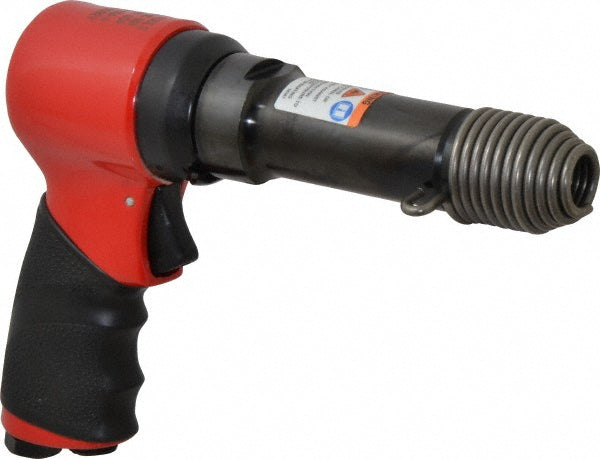

Sioux Tools 270A-4 Air Hammer 1700 BPM (4 in Stroke)

Product Description

Sioux Tools 270A-4 is a pistol-grip pneumatic rivet hammer that delivers approximately 1,700 blows per minute for rivet setting applications. The tool accepts 1/4 inch steel rivets, has a 4 inch stroke and a 0.6 inch bore, measures 7.8 inches overall and weighs about 3.5 lb. It operates at 90 psi with 8 cfm air consumption and uses a 1/4 NPT air inlet. Includes safety and instruction manual.

• Impact performance: approximately 1,700 BPM with a 4 in stroke and 0.6 in bore.
• Air requirements: 90 psi operating pressure, 8 cfm air consumption, 1/4 NPT air inlet; compatible with 3/8 in hose.
• Dimensions and handling: pistol grip with trigger start, overall length 7.8 in, tool weight about 3.5 lb; designed for setting steel rivets.

Product Highlights

Pistol-grip pneumatic rivet hammer for 1/4 in steel rivets; 1,700 BPM, 4 in stroke; 90 psi, 8 cfm; 1/4 NPT inlet.

Product Information

Standard Information

• Brand: SIOUX TOOLS
• Manufacturer Part Number: 270A-4
• Country of Origin: USA

Technical Specifications

• Brand: Sioux Tools
• MPN: 270A-4
• Model: 270A-4
• Type: Pneumatic rivet hammer
• Blows per Minute: 1,700 BPM
• Rivet Capacity: 1/4 in (6.35 mm) steel rivet
• Stroke Length: 4 in (101.6 mm)
• Bore Diameter: 0.6 in (15 mm)
• Air Pressure: 90 psi
• Air Consumption: 8 cfm (3.78 L/s)
• Air Inlet Size: 1/4 NPT
• Hose Size: 3/8 in (10 mm)
• Handle Style: Pistol grip
• Throttle Type: Trigger (teasing throttle)
• Overall Length: 7.8 in (198 mm)
• Weight: 3.5 lb (1.6 kg)
• Side to Center: 1.1 in (28 mm)
• Includes: Safety and instruction manual; beehive retainer; parts list
• Country of Origin: United States
