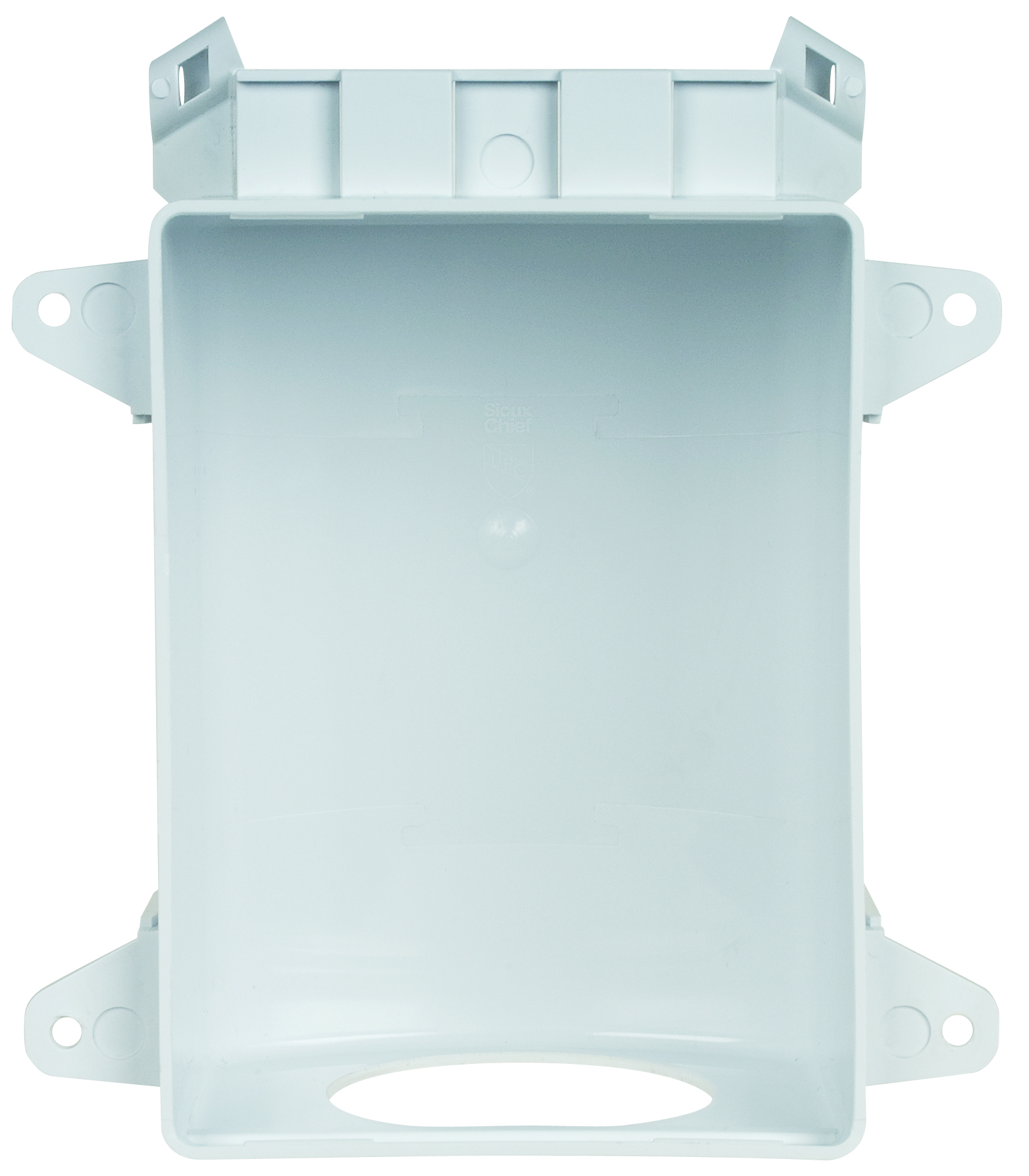

Sioux Chief 696-7 One-hole Box Dwv Pipe 2 Inches

Product Description

The SIOUX CHIEF 696-7 is a one-hole box designed for use with drain, waste, and vent (DWV) pipe installations. This box provides a clean, code-appropriate mounting solution for routing 2-inch DWV pipe through wall framing and structural cavities. It is used in residential and light commercial plumbing rough-in work where a single pipe penetration point is needed. Licensed plumbers and rough-in crews rely on this type of fitting box to maintain consistent pipe alignment and to meet inspection requirements for DWV system installations.

This box is suited for new construction and remodel applications where 2-inch DWV pipe must pass through a single-gang stud bay or framing cavity. It is compatible with studor mini-vent and similar air admittance valve assemblies that require a dedicated enclosure during rough-in. The 696-7 is the box-only component and does not include additional fittings or valves. It is intended for plumbers working on residential drain and vent systems where a neat, secure pipe anchor point is required at the wall framing stage.

Key Features

• Single-hole configuration sized for 2-inch DWV pipe
• Designed for in-wall rough-in installation within standard stud framing
• Box-only component for flexible pairing with compatible vent valves or fittings
• Supports proper pipe alignment and anchor positioning in DWV systems
• Suitable for both new construction and remodel rough-in work

Compatibility

Designed as an OEM-style replacement and new-installation component for 2-inch DWV pipe rough-in assemblies in residential and light commercial plumbing systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and ensure the DWV system is depressurized and clear before beginning rough-in work. Secure the box to wall framing according to manufacturer guidelines before pipe insertion. This is a box-only product; verify that any companion vent valve or fitting is sourced and installed separately.

Technical Specifications

• Pipe Size: 2 inches
• Application: DWV (Drain, Waste, Vent) pipe
• Configuration: One-hole box
• UPC: 739236154439

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 696-7
