Sioux Chief 689X3202 Rough In Pex Lav Salb 16 (1/2 inches 16 inches Stud Bay)

Product Description

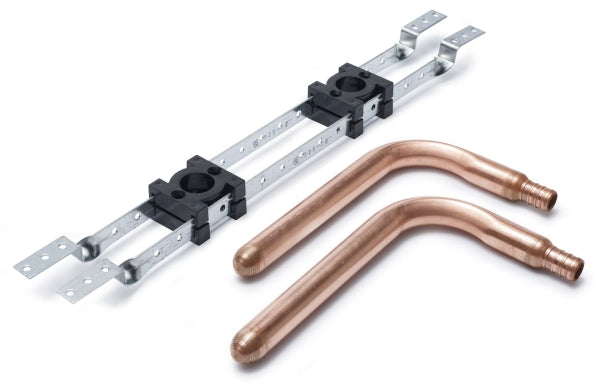

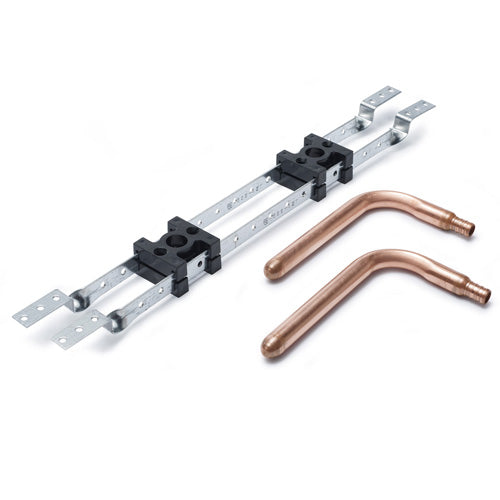

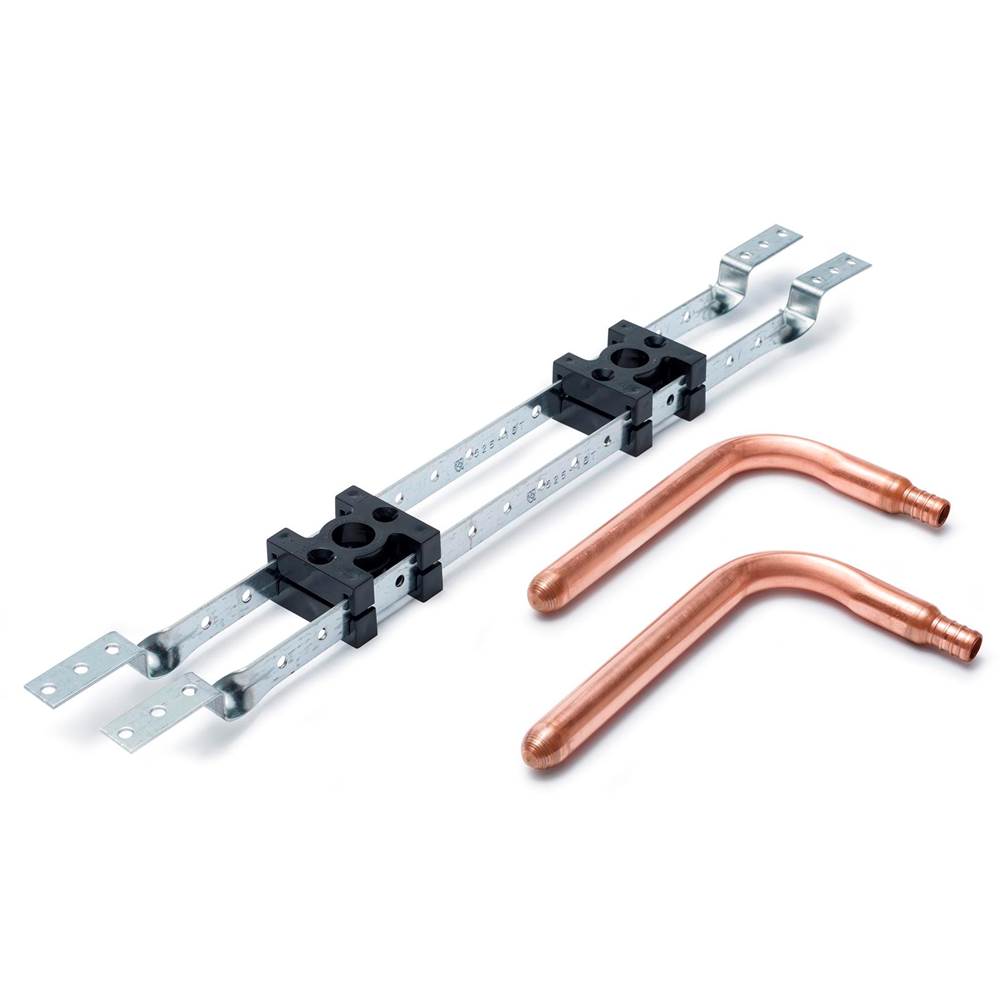

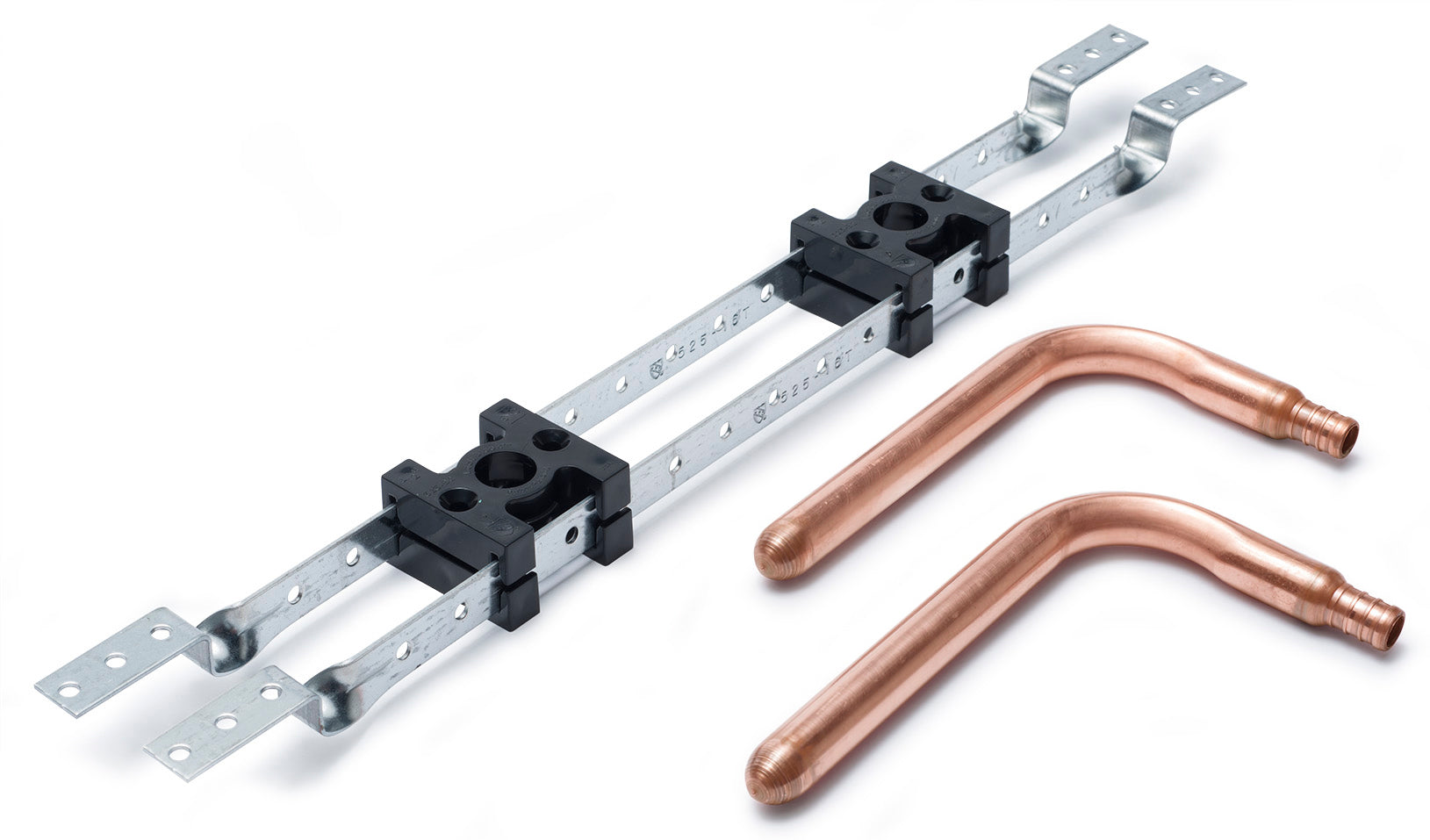

Sioux Chief 689X3202 is a rough-in PEX lavatory stub-out kit that provides preformed copper stub-outs and a StrongArm bracket for lavatory or sink rough-in installations. The kit includes two 3-1/2 x 8 in copper stub-out elbows with 1/2 in F1807 crimp PEX connections, two 1/2 in lock blocks, and is designed for 16 in stud bays. Components are Type L copper and conform to ASTM F1807.

• Two 3-1/2 x 8 in preformed copper stub-out elbows with 1/2 in F1807 crimp PEX ends
• StrongArm bracket with two 1/2 in lock blocks for installation in 16 in stud bays
• Copper components made from Type L tube; uses ASTM F1807 metal insert fittings with copper crimp ring

Product Highlights

Preformed Type L copper stub-outs with StrongArm bracket and F1807 crimp PEX connections for 16 in stud bay lavatory rough-in.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 689X3202
• Country of Origin: US

Technical Specifications

• Brand: Sioux Chief
• MPN: 689X3202
• Series: 689
• Product Type: Lav/sink stub-out kit (rough-in)
• Application: Lavatory/sink rough-in
• Stud Bay Width: 16 in
• Material: Copper (Type L)
• End Style / Connection Type: F1807 crimp PEX (metal insert with copper crimp ring)
• Nominal Stub-Out Size: 3-1/2 x 8 in
• Nominal Pipe Size: 1/2 in
• Included Components: (2) 3-1/2 x 8 in stub-out elbows with 1/2 in PEX connection; (1) StrongArm bracket; (2) 1/2 in lock blocks
• Standards / Approvals: ASTM F1807
• Supply Connection: PEX crimp / PEX x spin closed
• Weight: 1.01 lb
• UPC: 739236481986
• Country of Origin: US
• Unit Of Measure: EA
