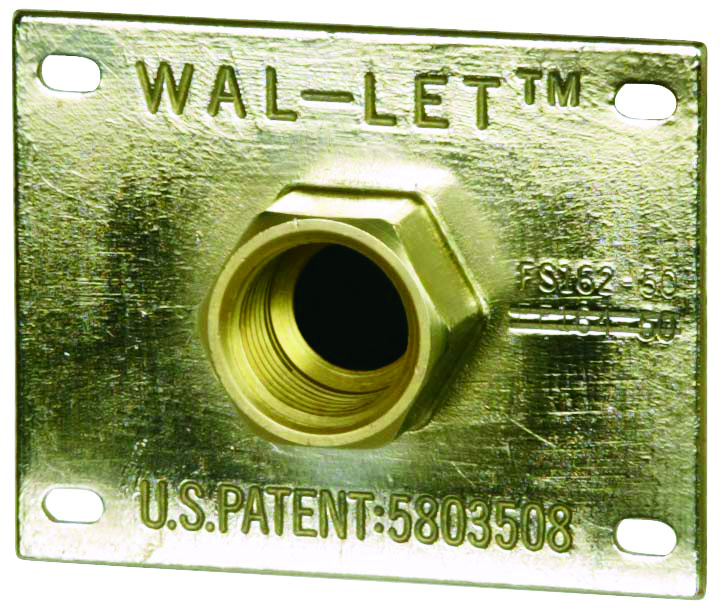

Sioux Chief 615-C2113 Straight Wall Termination Fitting

Product Description

The SIOUX CHIEF 615-C2113 is a straight wall termination fitting designed to transition between 1/2-inch CPVC pipe and a 1/2-inch female iron pipe (FIP) threaded connection. Constructed from brass, this fitting provides a durable, corrosion-resistant connection point at wall terminations in residential and light commercial plumbing systems. At 11 inches in length, it is sized to span standard wall assemblies and create a clean, secure transition from in-wall CPVC supply lines to exposed FIP threaded fixtures or valves. Licensed plumbers install this fitting as part of rough-in and finish plumbing work where CPVC transitions to threaded connections are required.

This fitting is suited for potable water supply applications where CPVC piping runs through wall cavities and terminates at a fixture outlet, stop valve, or appliance connection point. It is commonly used in residential construction and remodel projects, particularly where CPVC is the primary supply pipe material and the termination point requires a female threaded outlet for connecting fixtures or supply stops.

Key Features

• Straight configuration for in-line wall termination without directional offset
• 1/2-inch CPVC inlet by 1/2-inch FIP outlet provides a direct CPVC-to-threaded transition
• Brass construction for corrosion resistance and long service life in potable water systems
• 11-inch length designed to accommodate standard wall depth installations
• Wallet-style packaging for jobsite convenience and quantity tracking

Compatibility

Designed as an OEM-style replacement and new-installation fitting for residential and light commercial plumbing systems using 1/2-inch CPVC supply piping with 1/2-inch FIP threaded termination requirements.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the line before beginning work. Solvent-cement the CPVC socket end using CPVC-rated primer and cement only, following manufacturer cure time requirements before pressurizing. Thread the FIP end connections with an appropriate thread sealant or PTFE tape rated for potable water service.

Technical Specifications

• Inlet Connection: 1/2 inches CPVC
• Outlet Connection: 1/2 inches FIP
• Configuration: Straight
• Overall Length: 11 inches
• Material: Brass
• UPC: 739236495358

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 615-C2113
