Sioux Chief 525-162PB Strong Arm Lock Block 16 ga Twisted Bracket with 2 1/2 Plastic PEX Bend

Product Description

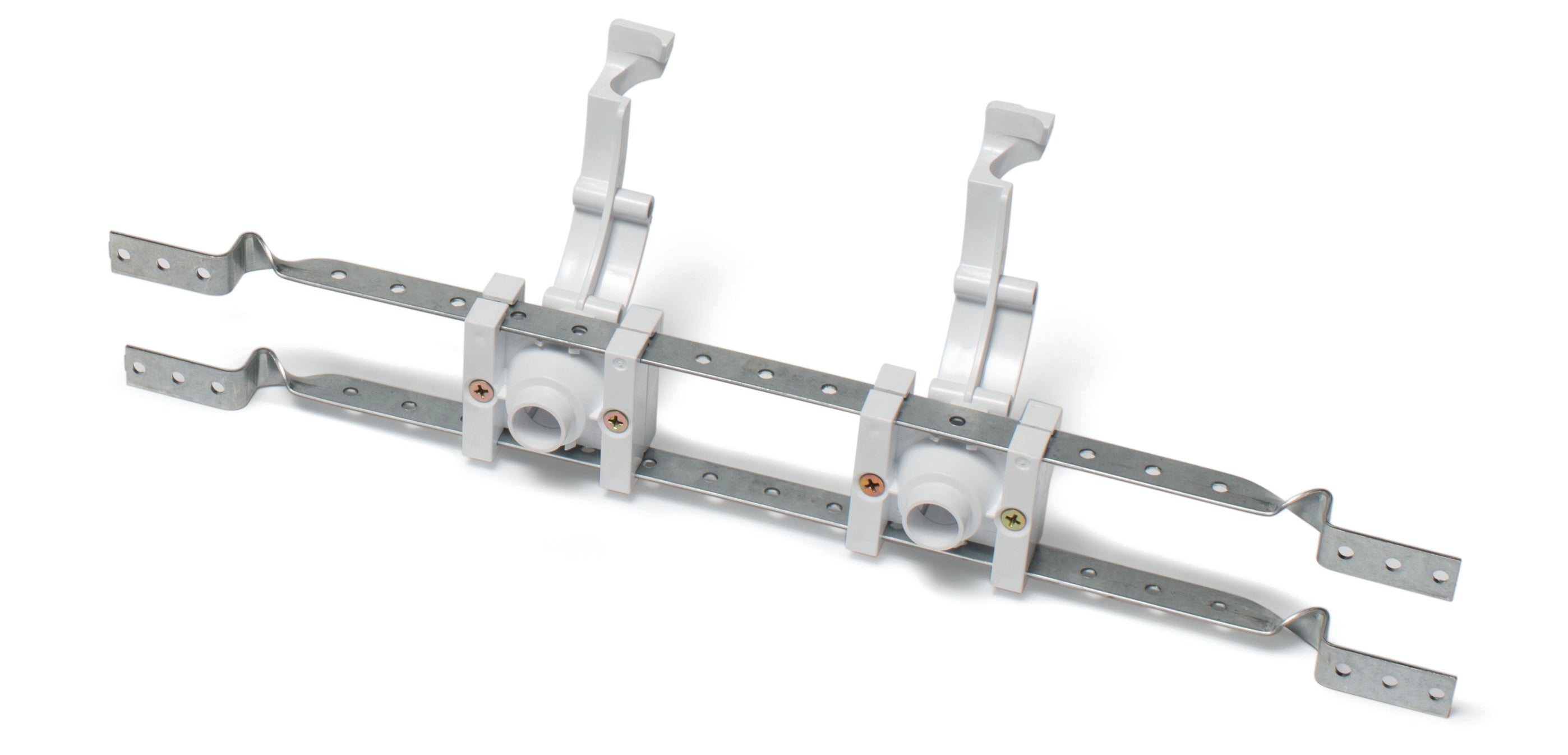

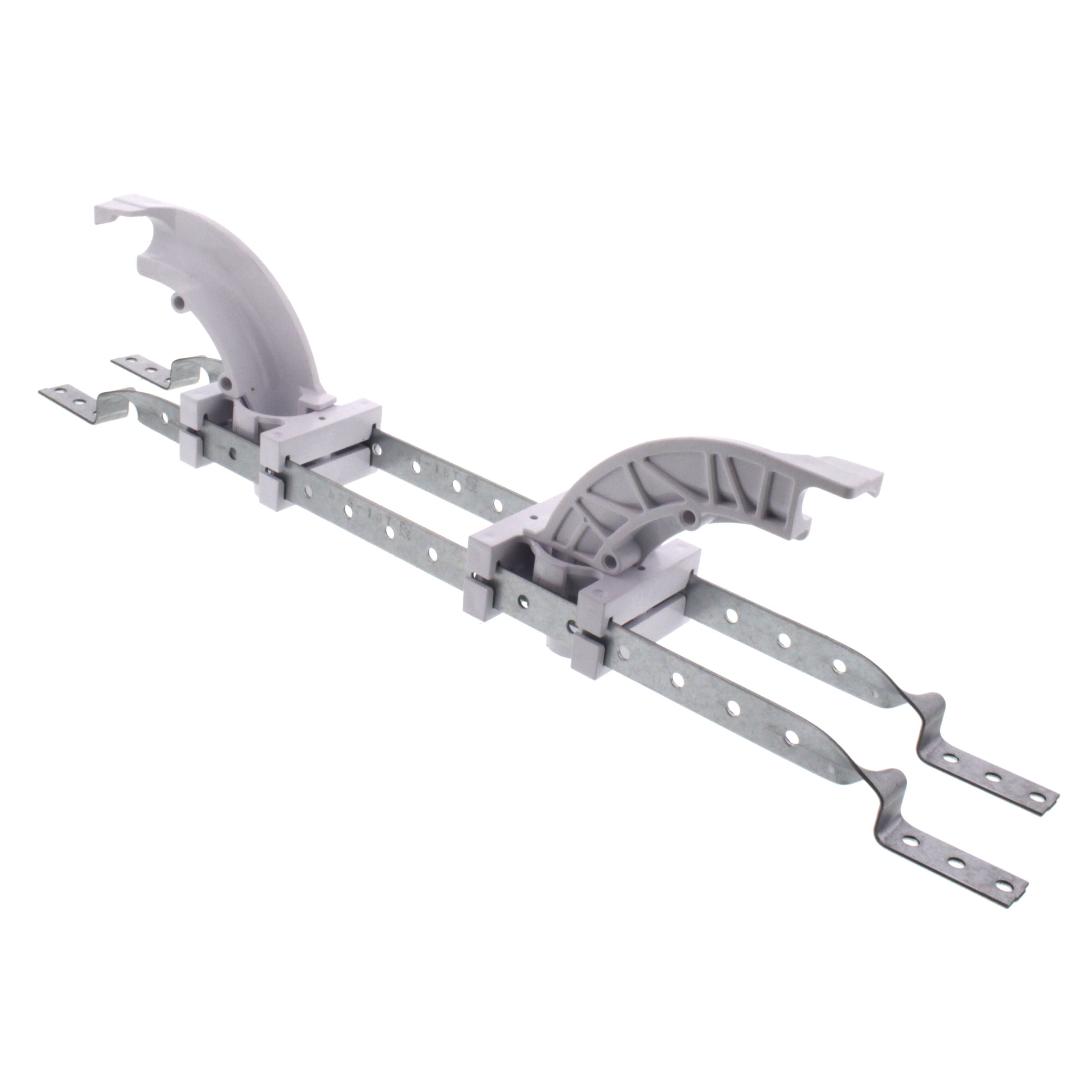

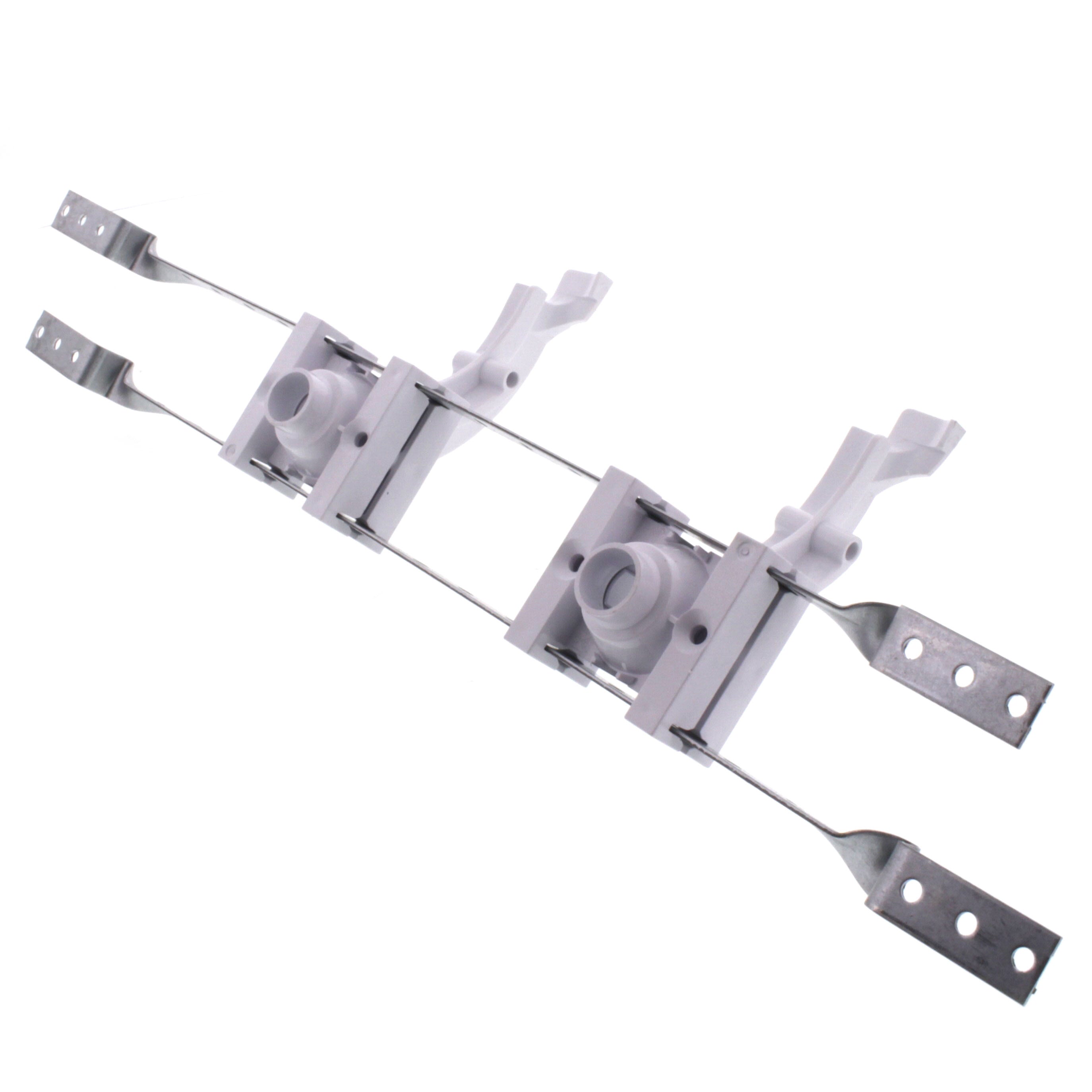

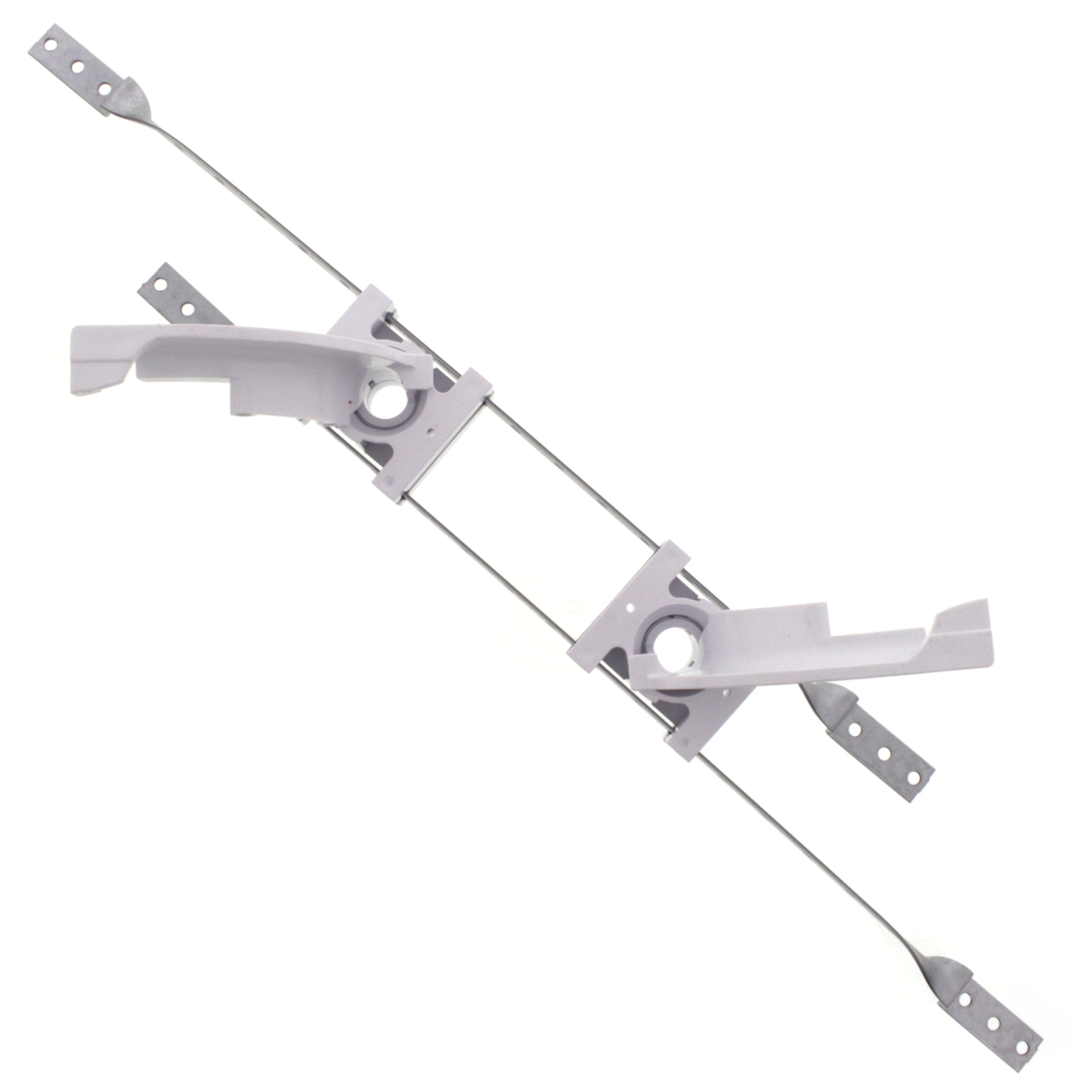

The SIOUX CHIEF 525-162PB is a 16 ga galvanized Strong Arm Lock Block twisted bracket with two 1/2 inch plastic PEX bend flexible tube supports. This preassembled bracketing system is corrosion-resistant and designed for use when penetrating a wall with 1/2 inch PEX tubing. It includes a plastic bend (elbow) device that swivels 360 degrees within a LockBlock assembly.

• Preassembled bracketing system
• Corrosion-resistant brackets
• Plastic bend (elbow) device swivels 360 degree

Product Highlights

Ideal for providing a rigid installation when stubbing out with 1/2 inch flexible CTS tube. PEX Bend LockBlocks are pre-assembled on each pair of brackets.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 525-162PB
• Country of Origin: US

Technical Specifications

• Color: Galvanized
• Vendor: Sioux Chief
• Collection: STRONG ARM LOCK BLOCK
• Product UPC: 739236267320
• UNSPSC Code: 31162500
• Color Family: Grays
• Model Number: 525-162PB
• Product Category: PVF
• Product GTIN/EAN: 0739236267320
• Load Capacity: 25 lb
• Thickness: 16 ga
• Material: Steel
• Finish: Galvanized
• Width: 2.2712 in
• Height: 2.1472 in
• Temperature Rating: 140 deg F
• Domestic/Import: Domestic
• Series: 525-PB
• Mfg Standards/Approvals: IAPMO Listed
• Includes: (2) Plastic Bend Supports
• Item Name: Twisted Bracket with 2-Plastic Bend Support
• Model: 525
• Sub Brand: StrongArm
• Safe Working Load (lbs) @ 140��F: 25 lbs
• Product Type: Twisted Bracket
• Catalog Number: 525-162PB
• Connection Size: 1/2 in CTS
• Specifications Met: Patent 8, 061, 390, #8, 141, 831, IAPMO Listed
• Resistance Properties/Features: Corrosion-Resistant
