Sioux Chief 521-851 Secure-All Pipe Support Bracket 20 inch length x 2.375 inch height

Product Description

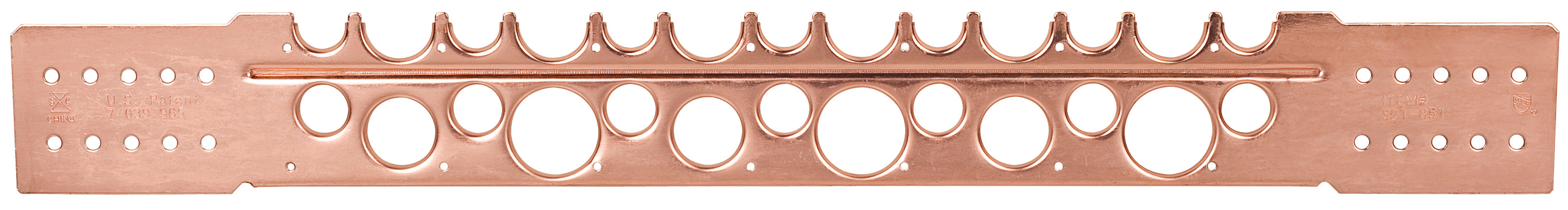

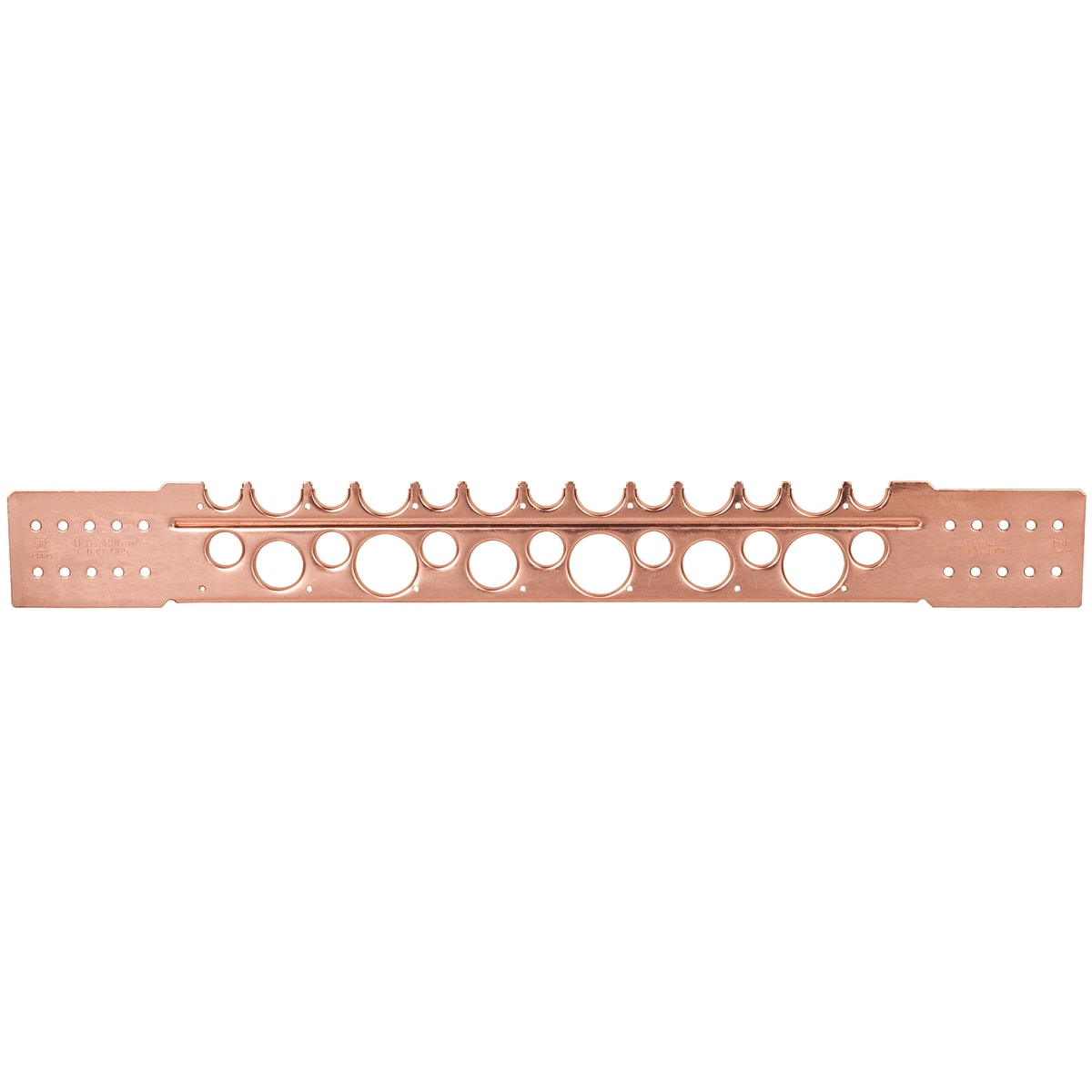

The SIOUX CHIEF 521-851 Secure-All Pipe Support Bracket is designed to support 1/2 inch, 3/4 inch, or 1 inch nominal copper stub outs for water supply lines. Constructed from 18 gauge copper plated steel, this flat bracket measures 20 inches in length by 2.375 inches in height. It features extruded holes and notches for improved soldering surfaces and formed stiffening ribs for rigidity. The bracket is IAPMO certified and suitable for various pipe sizes.

• Supports 1/2 inch, 3/4 inch, and 1 inch nominal copper stub outs for water supply lines.
• Constructed from 18 gauge copper plated steel with stiffening ribs for rigidity.
• Features extruded holes and notches for improved soldering surface and reduced inventory.

Product Highlights

Durable 18 gauge copper plated steel construction with extruded holes and stiffening ribs for secure pipe support.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 521-851
• Country of Origin: United States

Technical Specifications

• Type: Stub Out Flat Bracket
• Pipe Size: 1/2 Inch, 3/4 Inch, 1 Inch
• Material: 18 Gauge Copper Plated Steel
• Applicable Standard: IAPMO listed
• Number of Holes/Slots: 13
• Hole Size: (7) 1/2 Inch, (3) 3/4 Inch, (3) 1 Inch
• Notch Size: (7) 1/2 Inch, (6) 3/4 Inch
• Load Rating: 25 Pound
• Finish: Copper Plated
• Connection Type: CTS
