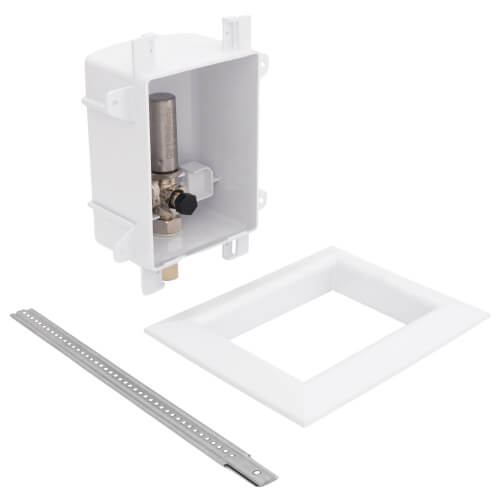

SIOUX 696-G1010CF OxBox Ice Maker Outlet Box with Water Hammer Arrestor

Product Description

The SIOUX 696-G1010CF is an OxBox ice maker outlet box designed for efficient water supply management. It is constructed of durable ABS plastic and provides reliability for ice maker applications. With a quarter-inch O.D. compression outlet connection and a high-quality quarter-turn ball valve, this product ensures effective control over water flow.

• Includes Mini-Rester water hammer arrestor
• Utilizes a quarter-turn ball valve for easy operation
• Mounts directly to a stud for simple installation

Product Highlights

This outlet box features an efficient design that includes necessary components to enhance water supply and prevent issues associated with pressure fluctuations.

Product Information

Standard Information

• Product Type: Ice Maker Outlet Box
• Application: Ice Maker

Technical Specifications

• Inlet Size: 1/2 inches
• Inlet Type: Male CPVC
• Outlet Size: 1/4 inches
• Outlet Type: Compression
• Material: ABS
• Maximum Temperature: 250°F
• Maximum Pressure: 250 psig
• Water Hammer Arrestor Included: Yes
• Overall Box Size: 4 inches x 5-1/2 inches x 3-1/2 inches
