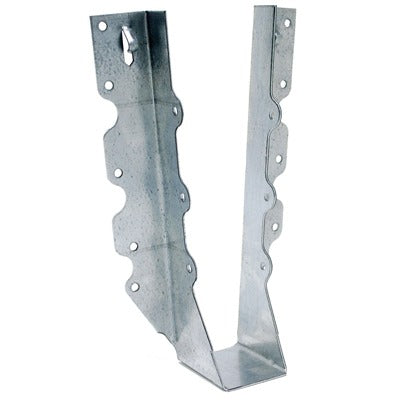

Simpson Strong Tie U210R 2x10 Face Mount Joist Hanger

Product Description

The SIMPSON STRONG TIE U210R is a face-mount U-style joist hanger designed to connect 2x10 lumber joists to headers in wood-frame construction. Built from 16-gauge galvanized steel, it provides reliable load transfer at joist-to-header connections. Integrated speed prongs assist with accurate positioning before fastening, reducing layout time on the job. The hanger is fastened using 10D or 16D nails through the header face and 10D x 1.5-inch nails through the joist seat. This part is installed by framing carpenters, general contractors, and structural trades on residential and light commercial framing projects.

The U210R is suited for floor and deck framing applications where 2x10 dimensional lumber joists bear against or hang from a structural header or beam. It is a standard face-mount configuration, making it applicable in platform framing, deck construction, and floor system assemblies. The sold unit is each, with a package quantity of 50 units per pack.

Key Features

• 16-gauge steel construction for structural strength at joist-to-header connections
• Galvanized coating provides corrosion resistance in interior and covered exterior applications
• Integrated speed prongs for fast, accurate positioning prior to nailing
• Accepts 10D or 16D nails in header and 10D x 1.5-inch nails in joist seat
• Face-mount design allows installation from the face of the header without special tools
• Sized specifically for 2x10 dimensional lumber

Compatibility

Designed as an OEM-style structural connector for use with 2x10 dimensional lumber in standard wood-frame construction applications.

Installation Notes

Installation is performed by qualified framing carpenters or structural trades. Fasten according to the fastener schedule specified by the manufacturer and the applicable building code for your jurisdiction, as connector load ratings depend on using the correct nail count and size. Do not substitute fastener types or sizes without verifying load table compliance. Verify framing lumber dimensions and moisture content before installation, as variations can affect connector fit and performance.

Technical Specifications

• Material: 16-gauge galvanized steel
• Lumber Size: 2x10
• Mount Type: Face mount
• Header Fasteners: 10D or 16D nails
• Joist Fasteners: 10D x 1.5-inch nails
• Package Quantity: 50 per pack
• Unit of Measure: Each
• Weight: 34 pounds (per pack)

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: U210R
