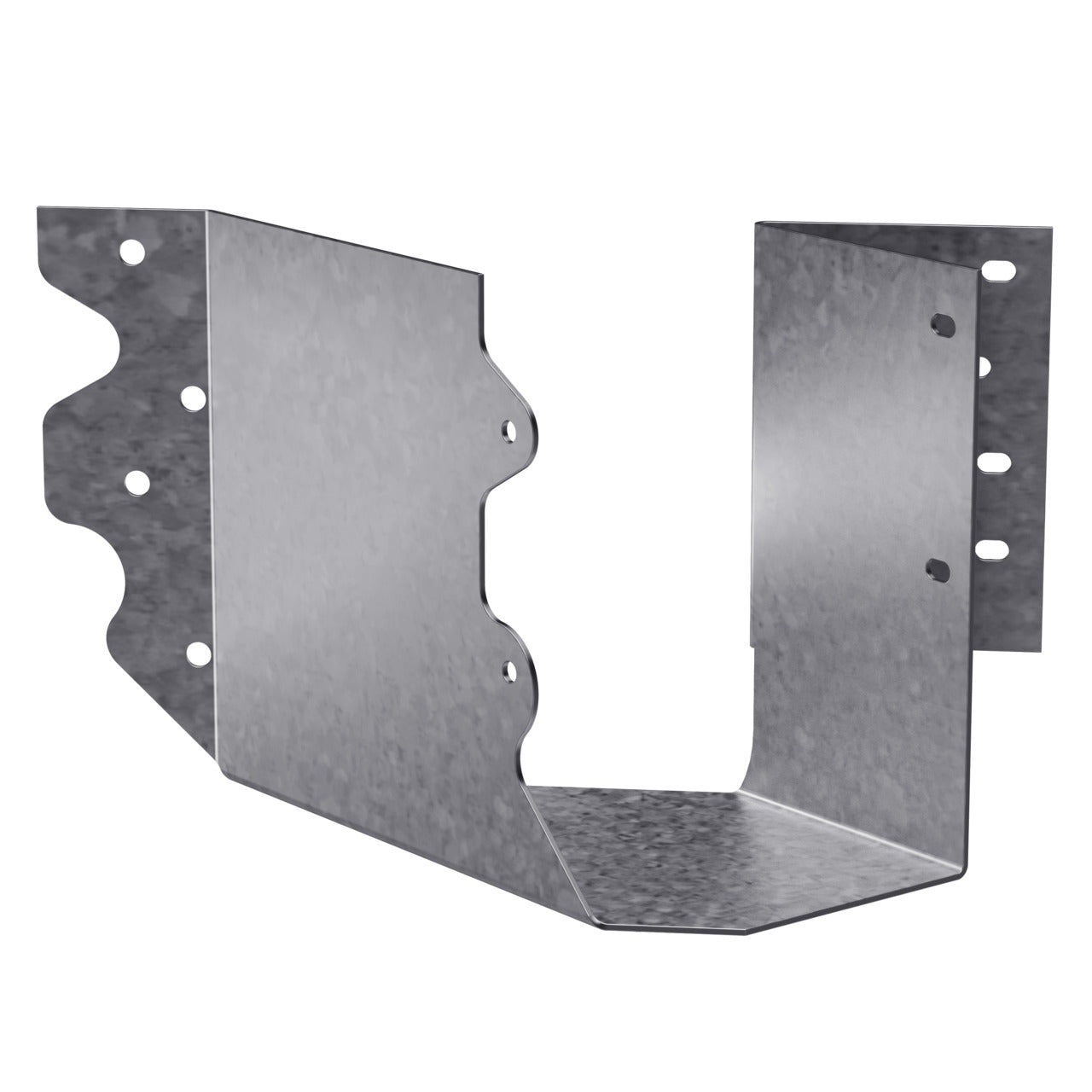

Simpson Strong-Tie SUR26 Joist Hanger Skewed Right

Product Description

The Simpson Strong-Tie SUR26 is a skewed right joist hanger designed for securing joists, rafters, or beams. It is part of a complete line of joist hangers and features options suited for various applications. This hanger is engineered to provide a solid connection between the joist and header, which strengthens structural integrity.

• Skewed right orientation for flexibility in installation
• Supports square cut or bevel cut joists
• Includes angled nail slots for accurate nail placement

Product Highlights

This joist hanger is ideal for building applications that require a secure and stable connection under load.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137SUR26

Technical Specifications

• Material: Steel
• Finish: G90 Galvanized
• Gauge: 16
• Fastener Size: (6) 0.162 x 3-1/2 in (Face), (6) 0.148 x 1-1/2 in (Joist)
• Allowable Loads:
• Uplift (160): 675 lb
• Floor (100): 865 lb
• Snow (115): 980 lb
• Roof (125): 1055 lb
• SPF/HF Allowable Loads:
• Uplift (160): 580 lb
• Floor (100): 745 lb
• Snow (115): 845 lb
• Roof (125): 905 lb
