Simpson Strong Tie RTC22Z Rigid Tie Connector 2x

Product Description

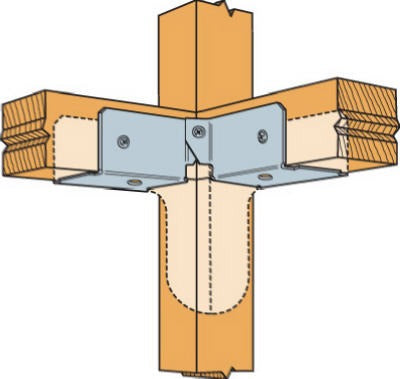

The SIMPSON STRONG TIE RTC22Z is a rigid tie connector designed to create strong, reliable connections between 2x framing members in structural applications. Finished with Z-Max coating, it provides enhanced corrosion resistance suited for outdoor and moisture-exposed environments. The connector is used by framers, structural carpenters, and general contractors to reinforce framing assemblies in both residential and light commercial construction. It ships in packages of 20 units and is installed with standard fasteners at the connector holes.

The RTC22Z is applied in wood-frame construction where rigid, load-transferring connections are required between dimensional lumber members. Typical install scenarios include wall framing intersections, post-to-beam connections, and similar structural tie points. Its Z-Max coating makes it a practical choice for covered outdoor structures, treated-lumber applications, and other environments where standard galvanized hardware would face accelerated corrosion.

Key Features

• Z-Max coating provides corrosion resistance for outdoor and treated-lumber environments
• Designed for 2x dimensional lumber framing connections
• Rigid tie geometry transfers load between framing members without flex
• Sold in packages of 20 connectors per unit of measure
• Suited for both residential and light commercial framing applications

Compatibility

Designed as an OEM-style structural connector for standard 2x dimensional lumber framing members in wood-frame construction assemblies.

Installation Notes

Installation is typically performed by licensed framers or structural carpenters following applicable building codes, including IBC and IRC provisions for connectors and fasteners. Fasten the connector using the specified fastener type and count indicated on the connector or in the manufacturer load tables — do not substitute fastener size or omit holes. Ensure framing members are properly aligned and plumb before securing the connector. Consult local code requirements for structural connector applications in high-wind or seismic zones.

Technical Specifications

• Coating: Z-Max
• Lumber Size: 2x
• Package Quantity: 20 EA
• Weight: 11 pounds

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: RTC22Z
