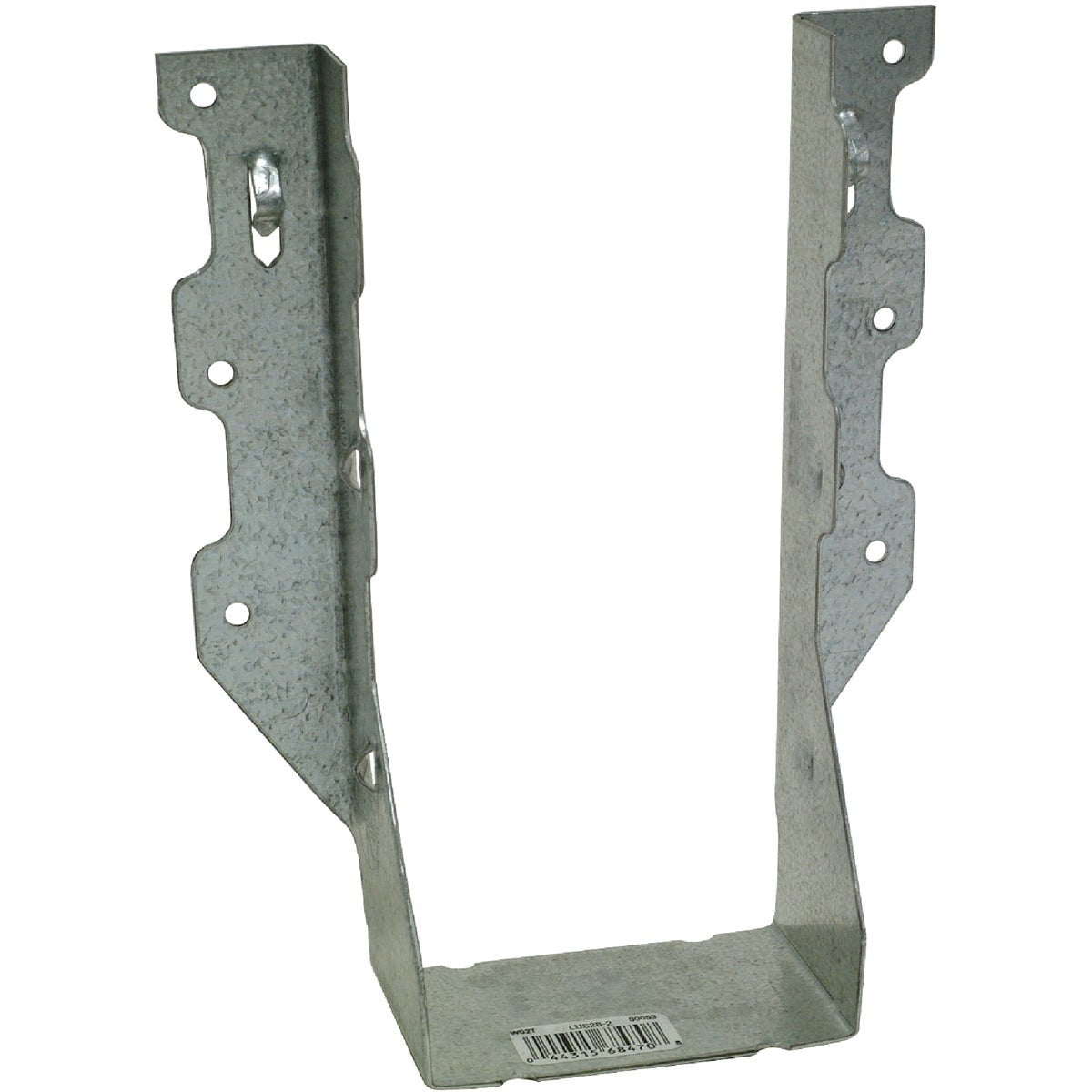

Simpson Strong-tie LUS28-2 Double Joist Hanger 2x8

Product Description

The SIMPSON STRONG-TIE LUS28-2 is a double joist hanger engineered for use with 2x8 dimensional lumber in wood-frame construction. It provides a reliable, load-rated connection between joists and a header or beam using double-shear nailing technology. Each joist nail passes through two shear planes, distributing the load across two contact points rather than one. This design increases connection strength without requiring additional fasteners. The LUS28-2 is installed by framing carpenters, structural contractors, and general trades working on floor, deck, and roof framing assemblies where engineered load transfer is required at joist-to-beam connections.

The LUS28-2 is suited for residential and light commercial wood-frame construction. Typical applications include floor joist framing, deck framing, and roof rafter connections where a header or carrying beam supports one or more 2x8 members. The double-shear design makes it appropriate for higher-load conditions that benefit from improved nail performance without increasing fastener count or changing nail type. All common nails are compatible with this hanger, which simplifies job-site fastener management.

Key Features

• Double-shear nailing distributes joist nail load across two contact points for increased connection strength
• Accepts all common nails — no special fasteners required
• Designed for standard 2x8 dimensional lumber
• Economical and widely used in residential and light commercial framing
• Faster installation compared to hangers requiring additional nailing patterns

Compatibility

Designed as an OEM-style replacement and standard framing connector for use with nominal 2x8 lumber in wood-frame floor, deck, and roof construction.

Installation Notes

Installation is performed by qualified framers or structural contractors in accordance with applicable building codes, including IBC and IRC fastener and connector requirements. Verify hanger orientation and seat contact with the carried member before nailing. Use only the nail sizes and quantities specified on the load table for this connector to maintain rated capacity. Do not substitute fastener types not listed in the manufacturer load table.
