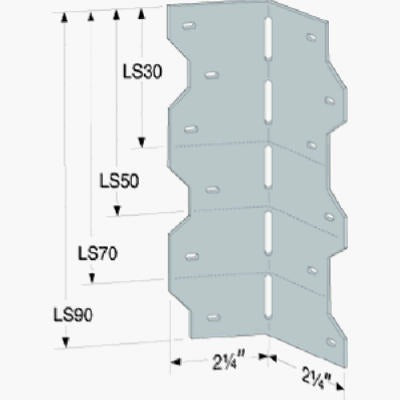

Simpson Strong Tie LS70 Adjustable L Angle Bracket

Product Description

The SIMPSON STRONG TIE LS70 is an adjustable L-angle framing connector made from 18-gauge G90 galvanized steel. It is designed to reinforce joints and connections in wood-framed structures by allowing the bracket to skew between 0 and 135 degrees. This range of adjustment makes it suitable for non-standard framing angles where a fixed bracket would not fit. The LS70 ships at a 45-degree preset angle, which simplifies positioning during installation. Licensed contractors and framing crews working on residential and light commercial projects will find this connector useful wherever skewed joist, rafter, or ledger connections are required.

The LS70 is used in wood-frame construction where structural connections occur at variable angles. Typical applications include floor framing, roof framing, and ledger-to-beam connections that fall outside standard 90-degree geometry. The bracket is appropriate for both residential new construction and commercial light-frame projects. It is installed using ten 10D nails at the fastener holes provided. When a single bracket is used per connection, care must be taken to prevent joist rotation — blocking or a second bracket on the opposing side is the common field remedy.

Key Features

• Adjustable skew range of 0 to 135 degrees accommodates non-standard framing angles
• 18-gauge G90 galvanized steel construction for corrosion resistance in exterior and treated-lumber applications
• Ships preset at 45 degrees to speed up layout and installation
• Installs with ten 10D nails using standard fastener holes
• Suitable for both residential and commercial light wood-frame construction

Compatibility

Designed as an OEM-style replacement and standard connector for wood-frame structural applications requiring adjustable-angle L-bracket connections at joist, rafter, and ledger intersections.

Installation Notes

Installation of the LS70 should be performed by a qualified framing contractor or carpenter familiar with structural connector requirements. Fasteners should comply with the connector manufacturer specifications — ten 10D nails as indicated. When a single bracket is used per connection point, install blocking or a paired bracket to prevent joist rotation, as required by the applicable building code. Consult local building codes and the applicable edition of the International Building Code for structural connector requirements on your project.

Technical Specifications

• Material: 18-gauge G90 galvanized steel
• Skew Adjustment Range: 0 to 135 degrees
• Fastener Requirement: Ten 10D nails
• Ship Angle: 45 degrees preset
• Package Quantity: 50 per package
• Package Weight: 17 pounds
• Unit of Measure: EA

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: LS70
