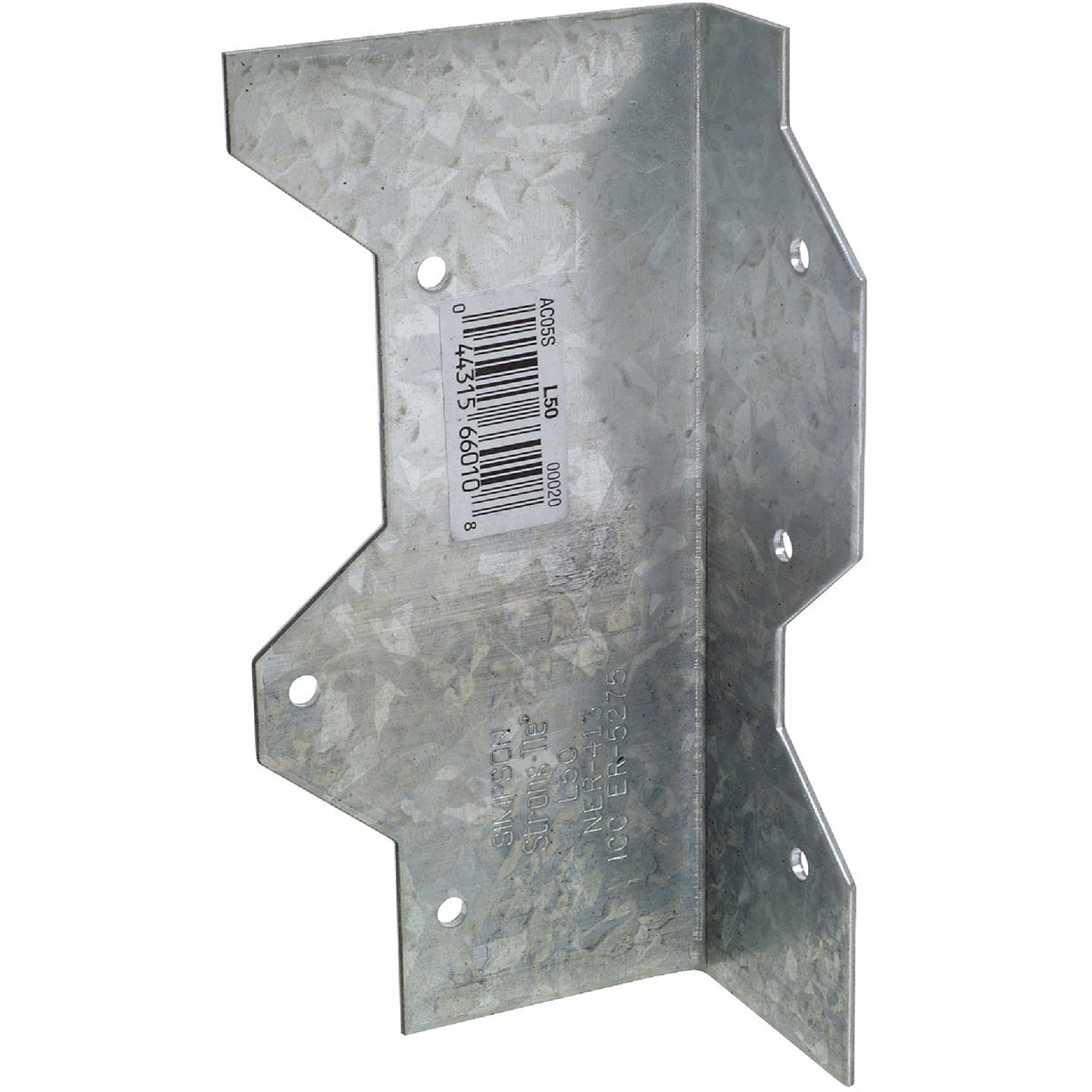

Simpson Strong-tie L50 Reinforcing L-angle

Product Description

The SIMPSON STRONG-TIE L50 is a 16-gauge galvanized steel reinforcing L-angle designed to strengthen angle connections in wood framing assemblies. It provides a stronger connection than a standard toe-nailed joint by transferring load across both members at the corner. The staggered nail pattern distributes fastener load to reduce the risk of wood splitting during installation. Licensed contractors, framers, and structural carpenters install this connector in residential and light commercial framing applications where code-compliant angle connections are required.

The L50 is suited for reinforcing perpendicular framing connections such as wall-to-plate, joist-to-beam, and similar structural intersections. It is used in residential construction, light commercial framing, and renovation work where additional connection strength is needed at angled or right-angle joints. The compact size allows installation in tight framing bays. ZMAX coating is available on select sizes in this series for applications requiring enhanced corrosion resistance in treated lumber or higher-moisture environments.

Key Features

• 16-gauge galvanized steel construction for durability in standard framing applications
• Staggered nail pattern reduces wood-splitting risk during fastener installation
• Provides stronger load transfer than a toe-nailed connection at angle joints
• ZMAX coating available on select sizes for use with treated lumber or in higher-moisture conditions
• Compact L-angle profile fits standard framing bays without obstruction

Compatibility

Designed as an OEM-style structural connector for standard dimensional lumber framing in residential and light commercial construction. Compatible with common framing nail schedules as specified by the manufacturer.

Installation Notes

Installation is performed by licensed framers, carpenters, or general contractors following applicable building codes such as the IBC or local residential building codes. Fasten the connector using the nail pattern printed on or specified for the product, filling all nail holes to achieve the rated load capacity. Do not substitute fastener types or sizes without verifying load equivalency with the manufacturer tables. Inspect the connector for damage before installation and do not install bent or deformed hardware.
