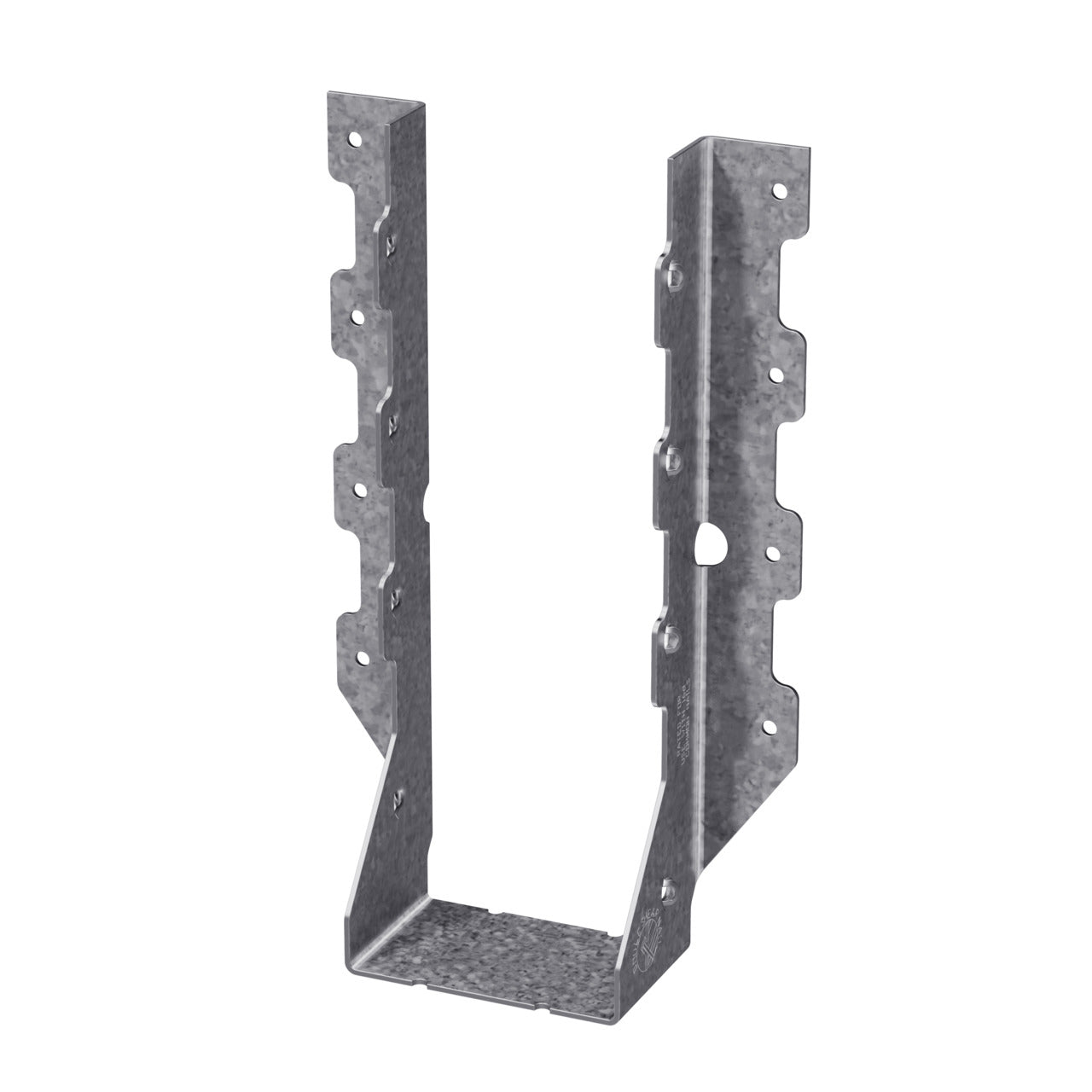

Simpson Strong-Tie HUS2122 Double-Shear Face-Mount Joist Hanger

Product Description

The Simpson Strong-Tie HUS2122 is a double-shear face-mount joist hanger made from durable steel. This hanger is engineered for installations where higher loads are required. Its innovative design allows load distribution through two points on each joist nail, promoting enhanced strength and stability.

• Double shear nailing improves load distribution.
• Fewer nails needed for installation.
• Compatible with standard nails for connections.

Product Highlights

Designed for high-load applications, this joist hanger excels in ease of installation and reduces overall costs.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• UPN: 044315441004

Technical Specifications

• Load Capacity: Uplift 3435 lb, Floor 2635 lb, Snow 3985 lb, Roof 3220 lb
• Gauge: 14
• Material: Steel
• Finish: G90 Galvanized
• Fastener Size: (10) 0.162 x 3-1/2 in (Header), (10) 0.162 x 3-1/2 in (Joist)
• Nominal Product Depth: 0 inches
