Simpson Strong Tie HU48 Face Mount Joist Hanger 4x8

Product Description

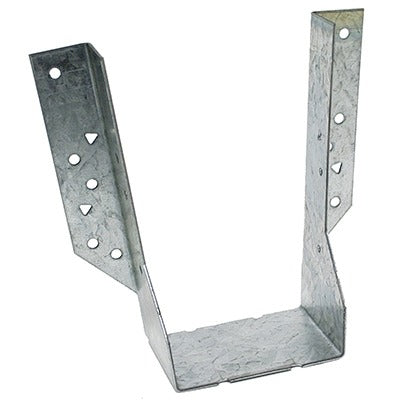

The SIMPSON STRONG TIE HU48 is a face mount U joist hanger engineered for structural wood framing applications. Fabricated from 14-gauge galvanized steel, it provides reliable load-bearing support where joists meet headers or beams. The U-channel profile seats the joist member securely, resisting uplift and lateral movement. Licensed contractors and framers install this hanger in floor, ceiling, and roof framing assemblies where code-compliant joist-to-beam connections are required. The galvanized coating provides corrosion resistance for both interior and exposed framing environments.

The HU48 is sized for 4x8 nominal lumber and fits residential and light commercial wood-frame construction. It is commonly used in floor joist framing, deck framing, and structural ceiling assemblies. The face mount design attaches directly to the face of a header or carrying beam, making it compatible with standard framing layouts where a top-flange hanger is not practical. Install locations include single-family homes, multifamily structures, and commercial light-frame projects.

Key Features

• 14-gauge steel construction for high load-bearing capacity in structural framing
• Face mount U design seats 4x8 nominal joist members against headers or beams
• Galvanized finish provides corrosion resistance in varied framing environments
• Compatible with both residential and light commercial wood-frame applications
• Sold in a package quantity of 25 units for multi-connection framing jobs

Compatibility

Designed as a face mount joist hanger for 4x8 nominal lumber members in standard wood-frame construction assemblies.

Installation Notes

Installation is performed by licensed framers or structural carpenters following applicable building codes, including IBC and IRC framing requirements. Disconnect or de-energize any adjacent utilities before working in framing bays. Fasten with manufacturer-specified structural nails or screws in all provided nail holes to achieve rated load capacity — omitting fasteners from any hole reduces the connection rating. Inspect the hanger seating to confirm the joist bears fully into the U-channel before finalizing fasteners.

Technical Specifications

• Material: 14-gauge galvanized steel
• Joist Size: 4x8 nominal
• Mount Type: Face mount
• Finish: Galvanized
• Package Quantity: 25 per package
• Weight: 23 pounds
• Unit of Measure: EA

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: HU48
