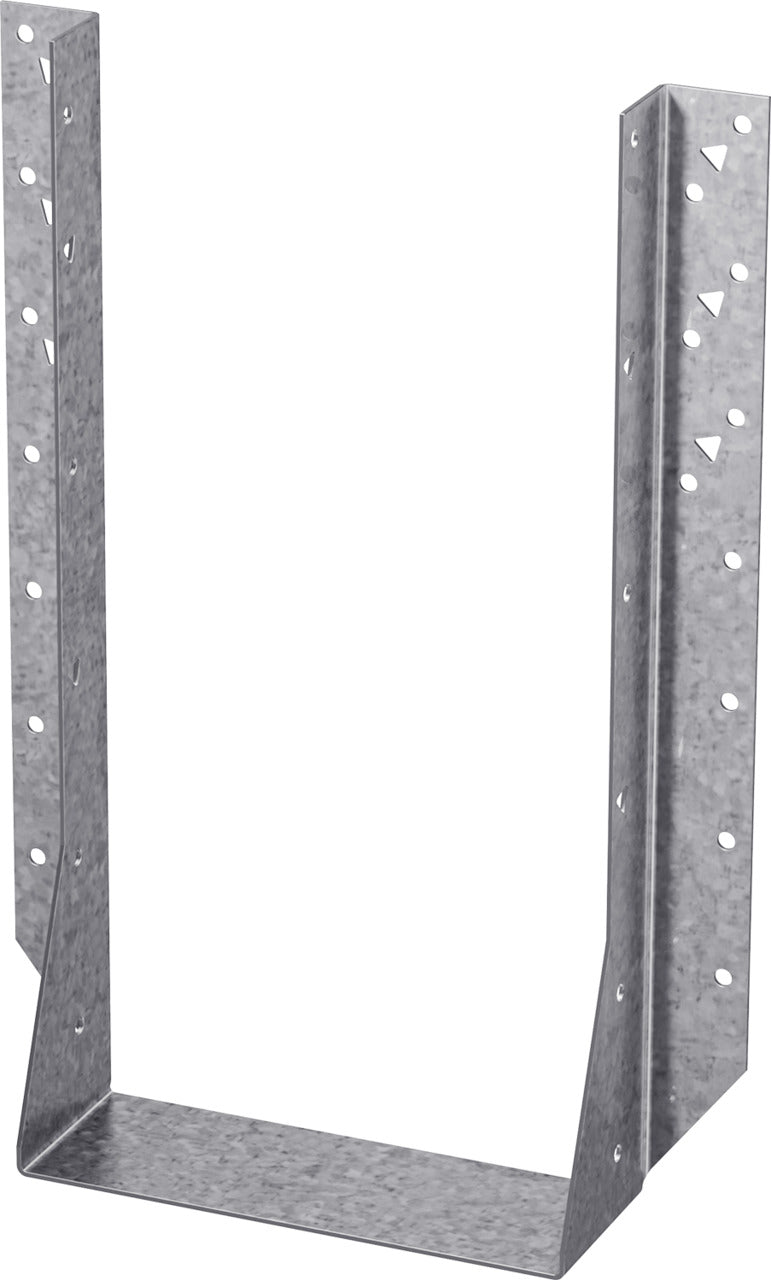

Simpson Strong-Tie HU4142 Heavy Duty Face-Mount Joist Hanger

Product Description

The Simpson Strong-Tie HU4142 is a heavy-duty face-mount joist hanger designed to support joists in various construction projects. Made from fourteen-gauge steel, it has triangle and round holes to accommodate common nails. This product is ideal for applications in schools and other structures where extra strength is necessary.

• Made of fourteen-gauge steel for increased durability
• Designed for easy installation with triangle and round holes
• Meets safety and load requirements for various applications

Product Highlights

This joist hanger is suitable for both GFCMU and concrete applications, providing solid support where needed.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: HU4142

Technical Specifications

• Allowable Loads: Uplift (160) 1795 lb, Down (100/125) 4920 lb
• Gauge: 14
• Finish: G90 Galvanized
• Fastener Size: (20) 1/4 x 2-3/4 in, (20) 1/4 x 1-3/4 in, (8) 0.162 x 3-1/2 in
• Nominal Product Depth: 0 inches
