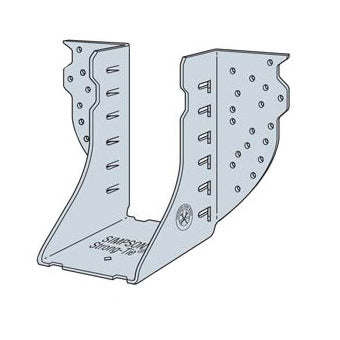

Simpson Strong-Tie HGUS264 Heavy Double Shear Face-Mount Joist Hanger

Product Description

The Simpson Strong-Tie HGUS264 is a heavy-duty double shear face-mount joist hanger designed for applications where higher load values are needed. This joist hanger features innovative double shear nailing that allows for the distribution of load across two points on each joist nail, resulting in greater strength. It simplifies installation by requiring fewer nails and is compatible with all common nail types.

• 100% battery powered, eliminating gas and compressor use.
• Brushless motor enhances runtime and durability.
• Micro nose improves view and accuracy during nail placement.

Product Highlights

Ideal for heavy load conditions, this hanger supports various applications with robust structural integrity.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137HGUS264

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Gauge: 12
• Load Specifications: Uplift (160) 2155 lb, Floor (100) 4340 lb, Snow (115) 4850 lb, Roof (125) 5170 lb, Wind (160) 5575 lb
• Fastener Size: (20) 0.162 x 3-1/2 in (Carrying Member), (8) 0.162 x 3-1/2 in (Carried Member)
