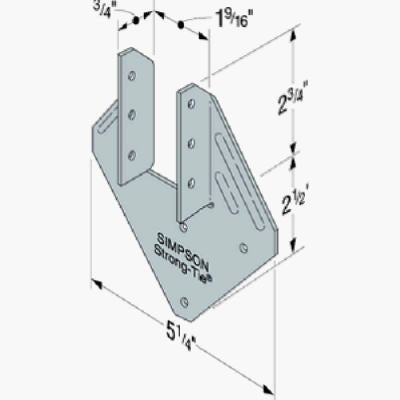

Simpson Strong Tie H1 Hurricane Tie G90 Galvanized

Product Description

The SIMPSON STRONG TIE H1 is a G90 galvanized hurricane tie designed to anchor rafters and trusses to top plates in light-frame wood construction. It resists uplift and lateral loads caused by high winds and seismic events, reinforcing the roof-to-wall connection at one of the most critical load-transfer points in a structure. The inward-facing flange design accommodates standard framing layouts without requiring special cutting or shimming. Licensed contractors and framers install this connector as part of a complete lateral and uplift restraint system. Fastening is accomplished with six 8d x 1-1/2 inch nails on the rafter or truss and four 8d nails on the plate.

The H1 hurricane tie is used in residential and light commercial wood-frame construction where wind uplift or seismic restraint is required by local building codes. It is commonly specified in coastal, high-wind, and seismic zones where prescriptive framing alone does not meet code requirements. The connector fits standard dimensional lumber framing and is typically installed at every rafter or truss-to-plate junction along the roof perimeter. Building departments in hurricane-prone regions frequently require this connector or its equivalent on permitted projects.

Key Features

• G90 galvanized steel finish provides corrosion resistance for exterior and treated-lumber applications
• Inward-facing flange design fits standard rafter and truss-to-plate connections without modification
• Resists wind uplift and seismic lateral loads at the roof-to-wall interface
• Installs with common 8d nails — no special fasteners required
• Sold in a package of 100 connectors for full-project coverage

Compatibility

Designed as an OEM-style structural connector for standard dimensional lumber roof framing applications where a rafter or truss bears on a wood top plate.

Installation Notes

Installation is performed by licensed framers or contractors in accordance with local building codes and the applicable edition of the International Residential Code or International Building Code. Fasten with six 8d x 1-1/2 inch nails through the rafter or truss flange and four 8d nails through the plate flange as specified. Do not substitute fastener type or quantity, as load ratings are dependent on the specified nailing pattern. Verify that the lumber is dry and free of splits at all nail locations before driving fasteners.

Technical Specifications

• Finish: G90 Galvanized
• Fastener Requirement (Rafter/Truss): Six 8d x 1-1/2 inch nails
• Fastener Requirement (Plate): Four 8d nails
• Package Quantity: 100 per package
• Weight: 22 pounds (per package)
• Unit of Measure: EA

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: H1
